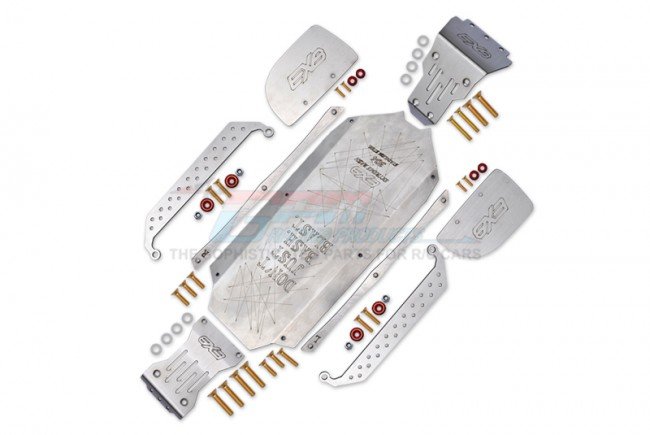

This product includes :
Front and impact-resistent protection plate-2pcs
Middle security plate-1pc
Stiffener-2pcs
Side pedal-2pcs
Fender-2pcs
Taiwan imported gold flat mind screws 4*20-6pcs
Taiwan imported gold flat mind screws 3*20-2pcs
Taiwan imported gold flat head screws 3*16-5pcs
Taiwan imported gold flat head screws 3*12-5pcs
Taiwan imported gold flat mind screws 3*10-4pcs
Special rushing metal collar-8pcs
Special countersunk head spacer-8pcs
M3 Lock nut-4pcs
component Location:
Below forward, center, back chassis
Does this system change a particular part or function?
No
Product major function & usage:
Increase the firmness for the framework, impact-resistant and wear-resistant, and bolster the body structure
1. Made with metal available good security for front, center and back chassis, prevent rustiness.
2. Detail by detail workmanship with many quality checks along each procedure. Metallic area gives strong visual effect.
3.Hand-polished finishing of each piece carried out by the group.
4.This is the optional Hot race stainless Steel Center armor skid plate is the ultimate security from any rock hits.
5.stainless metal 304 center dish 1mm, middle stiffener 2mm, front and rear bumpers 2mm, side pedals 3mm, fenders 1mm
Installation directions: Non-destructive installation, in line with the initial framework, utilising the extended silver Fangsheng screws and nylon spacers to correct directly .
Suitable Model:
ARRMA-1/7 4WD FIRETEAM TACTICAL DEVICE 6S BLX SPEED ASSAULT VEHICLE-ARA7618
