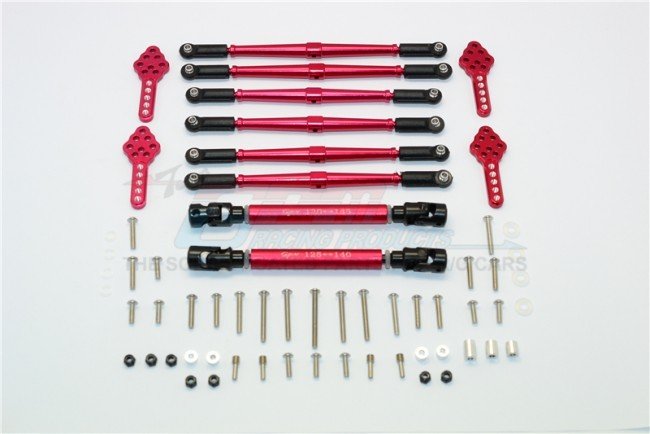

This system includes :
Stainless metal Button Head Screw
3*30 - 1pc
3*25 - 4pcs
3*20 - 3pcs
3*16 - 8pcs
3*10 - 8pcs
Aluminium Collars
3*6*4 - 4pcs
3*6*6.5 - 1pc
3*6*7.5 - 1pc
3*6*9 - 1pc - 4pcs
M4*2.5*12 Screw Shaft
O-Ring
4*2.5 - 4pcs
4*1 - 4pcs
3MM T Lock Nut - 7pcs
Product major function & usage :
1. raise the height regarding the framework, expand the crawling angle particularly in complex crawling rocky landscape
2. Main Shaft is upgraded from CVD visit universal swing shaft cross head to obtain a larger angle of steering
3. Based on different holes associated with the damper plate, they may be able enable the dampers to be modified in various height.
Lift the automobile from 77mm ground clearance to 87mm ground clearance can guarantee the crawling angles become larger and able to face more complicated high traction landscape. This combo is ready to plug and play. We've measured every single tie rod with really accurate measurement in order to avoid amount of them is perfect without force during crawling.
Original height of chassis ground clearance 77mm, this lift combo gets the height of 87mm, with a 10mm height increase
Front upper framework link tie pole : Midpoint 130mm
Front lower framework link tie pole : Midpoint 130mm
Rear reduced framework link tie rod : Midpoint 140mm
Adjustable main shaft : Long primary shaft 125mm-140mm, Short main shaft 130mm-145mm
