AXIAL Racing SCX10 II Aluminium Chassis Lift Combo (Switch From 77mm To 87mm) - 77pc set - GPM SCX27H87  [SCX27H87]

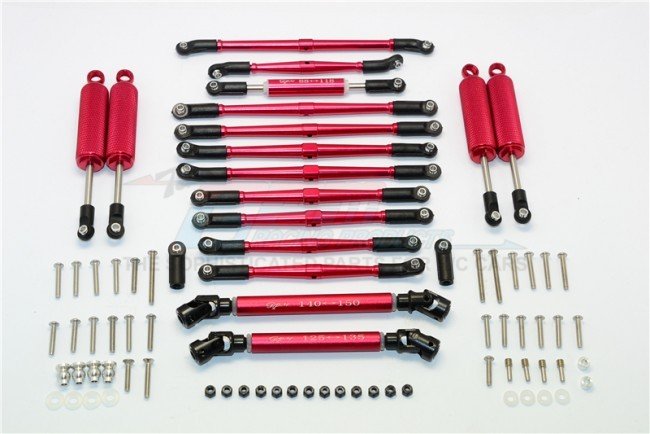

This product includes :

Stainless Steel Button Head Screw

• 3*30 - 3pcs
• 3*20 - 4pcs
• 3*18 - 9pcs
• 3*16 - 8pcs
• 3*14 -1pc

Metal Flat Head Screw

• 3*20 - 1pc
• 3*16 - 1pc
• 3MM T Lock Nut - 13pcs
• 3*6*4 Aluminium Collars - 2pcs
• Aluminium Collars - 4pcs
• Pelrin Collars - 4pcs
• M4*2.5*12 Screw Shaft - 4pcs
• 4*2.5 O-Ring - 4pcs
• Straight Ball Ends Installed with 5.8X7.5 Balls - 2pcs

raise the height associated with the framework, enlarge the crawling angle particularly in complex crawling rocky landscape
Main Shaft is upgraded from CVD head to universal move shaft cross check out get a larger angle of steering

Initial height of chassis ground clearance 77mm, this lift combination gets the height of 87mm, with a 10mm height increase
Front steering tie rods set contains
Long tie pole : midpoint distance 145mm,
Brief tie rod : midpoint distance 106mm
Front supportive adjustable tie rod with springtime : Midpoint travel from 88mm - 118mm
Front upper framework link tie pole : Midpoint 110mm
Front lower framework link tie rod : Midpoint 122mm
Rear top chassis website link tie pole : Midpoint 136mm
Backside lower chassis website link tie pole : Midpoint 144mm
Midpoint distance associated with the dampers : 103mm

Adjustable primary shaft :
very long primary shaft 140mm-150mm,
brief primary shaft 125mm-135mm
