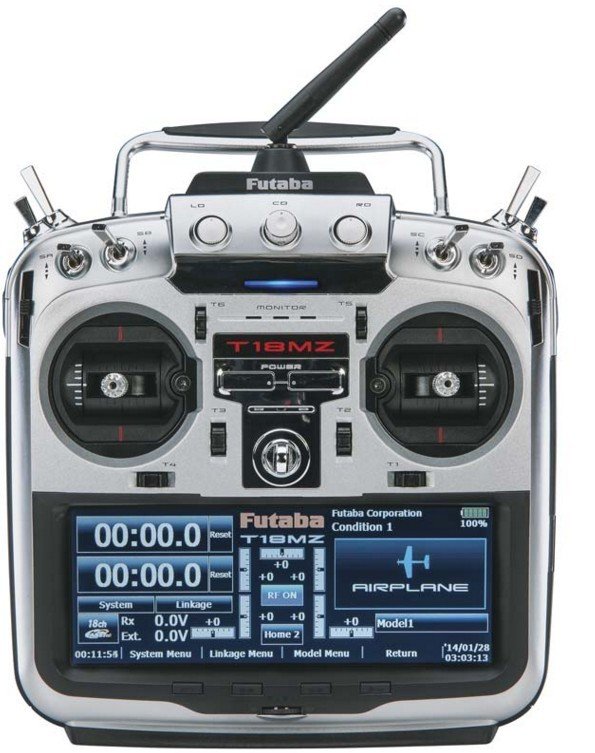

Futaba 18MZA 18-Channel 2.4G T-FHSS with R7008SB TX-Li Ion 18MZ Airplane Version Transmitter  [FP-18MZA-WC]

Futaba 18MZ 18-channel 2.4GHz Computer Radio System
In the event that sheer amount of actions you can take aided by the 18MZ is impressive, the amount of means it gives you for doing them is absolutely nothing short of awe-inspiring. There's software for airplanes, helis and gliders, eight flight conditions and ten programmable mixes for each and many factory-programmed mixes. Plus more features than you'll probably use within a very long time of flying.

If that's true, well-known real question is, "Why consist of them?" The response is simple: it's because no two pilots arranged a radio in exactly exact same means. The main reason the 18MZ provides such unparalleled setup and performance versatility is really so it could be setup inside primary means of all: yours.

Features:

• Using the high-voltage R7008SB, your servo and channel choices are wide open.Use around 8 stations with standard PWM outputs,up to 18 networks (16 proportional + 2 switched) through two S.Bus ports, and enjoy S.Bus setup ease of use and programmable performance.
• Built-in 0.3 megapixel camera makes taking aircraft ID photos fast and simple.
• The 6" diagonal (152 mm) HVGA touch screen provides 640 x 240 meaning and adjustable backlighting for outstanding presence. SensorTouch technology allows you to navigate and plan with rate and ease.
• Two USB ports provide easy how to connect with a keyboard or mouse, download and storage space telemetry information or access setups saved on an external memory stick.
• This serial user interface offers the exact same convenience once the stand-alone CIU-2. It's perfect for programming GY520 and CGY750 gyros, and S.Bus and S.Bus2 Servos.
• Stick perspectives adjust effortlessly, to tailor the 18MZ's feel to your hand.
• The 18MZ is sold with a 7.4V, 3500mAh LiPo transmitter battery. Provides energy for approximately 6 hours of uninterrupted flying.
• With effortless Link ID, it is possible to connect the transmitter and receiver with a tap regarding the touch screen.
• Large spacing between shoulder switches renders room for the hands to remainder.
• The removal of one screw frees the whole switch block. Specific switches can be unscrewed for simple replacement or moved for a custom setup.
• Look inside the 18MZ, while'll understand Futaba's commitment to reliability at every change, from the utilization of area mount technology to attenuate the results of vibration to Ball Grid Array to pack probably the most radio in the least space.
• Jacks for S.Bus servo development, in-transmitter recharging plus the earphone can be found on straight back panel for quick access and protection.
• The high-voltage R7008SB works with along with Futaba telemetry sensors, including S.Bus and S.Bus2 servos. Both can be plug into the R7008SB, without user interface bins and decoders needed by other systems.* Decoder required if non-S.Bus servos are utilized.

Overview:

• Networks: 16 proportional, 2 switched
• Suitable for:
  • FASSTest, FASST and S-FHSS protocols
  • Futaba HV (High-Voltage) receivers
  • All Futaba telemetry sensors
• Free on the web computer software improvements
• 92MB interior memory
• Expandable model memory
• 32-character individual naming
• 32-character model naming
• Airplane, helicopter, glider and motor glider development
• 3 assignable rotary knobs
• 4 assignable slider switches (2/side)
• 5 assignable three-position switches
• 2 assignable two-position switches
• 1 assignable momentary two-position switch
• Dual, high-speed processors
• Earphone jack
• 0.3 megapixel camera
• Audio & Movie players
• Built-in microphone
• Development tools for S.Bus servos & gyros
• Easy Link ID touchscreen
• Comfortable rubber grips regarding edges and back
• Stick calibration, plus stress and angle corrections
• Quad bearing gimbals
• Quick model select
• Servo monitor (basic and moving tests)
• 2 up/down timers
• Built-in timer system
• Model timer
• 4 vibration warning choices (battery pack, condition, trim mix 1 & 2)
• Programmable trainer system
• Servo rate adjust
• Trim mix
• Programmable logic switches
• Consumer menu
• Sub-trim (240 actions; stations 1-16)
• Servo reversing (all networks)
• Fail-Safe (all networks)
• Battery fail-safe (all linear networks)
• Endpoint Adjustment (all channels)
• Trim (adjustable action, rate & mode)
• Journey conditions
• AFR
• AFR curve mode (6)
• AFR curve point quantity (15)

Airplane programming features:

• 8 flight conditions
• 15 factory-programmed mixes
• Flap setting menu
• Differential ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Airbrake to elevon Mixing
• Rudder to ailevator blending
• Rudder to elevator blending
• Camber combining
• Elevator to camber blending
• Camber flap to elevator mixing
• Snap roll combining
• Airbrake mixing
• V-Tail mixing
• Motor blending
• Fuel mixture
• Multi-Engine mixing
• Gyro blending

R7008SB Receiver Features:

• Bi-directional communication with a FASSTest Futaba transmitter using the S.Bus2 slot
• Multiple optional telemetry sensors can be connected to the S.Bus2 slot and also the information displayed regarding transmitter
• Includes both standard PWM production ports and S.Bus production ports
• External voltage port, 0-70V DC
• The exterior Voltage connector necessary for this really is:FUTM5551 CA-RVIN-700 EX VLT CBL

R7008SB Receiver Specs:

• Getting Frequency: 2.4GHz FASSTest system
• Energy Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
• Current drain: 75mA
• Exterior voltage Port: 0 - 70V DC
• Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
• Body weight: 0.38oz (10.9g)
• Antenna Length: 5-3/4"
