Futaba 4NBL 4-Channel FM 35or40MHZ/ R115F/ 3xS3003 [4NBL_C1]

Price:

USD$97.00

Brand:

Futaba

Model:

4NBL_C1

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - System - Transmitter - Car Transmitters category

Write a review

Description

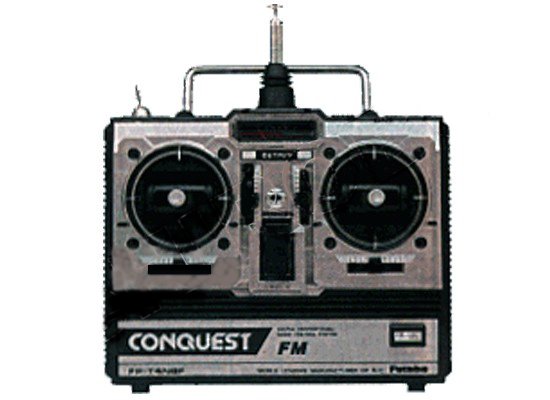

Futaba "Conquest" 4NBF 4 channel FM system like in the Attack system, the Conquest comes with full NiCad batteries and charger. The Conquest can be obtained with micro servos and a smaller receiver battery pack (4NBFS, "S" for Sailplanes) that means it is extremely appropriate both novice as well as other tiny sailplanes like handlaunch. As of this moment, the Conquest is not any much longer being manufactured, but is nevertheless for sale in some shops and mail order outfits. The Conquest is an FM system and has better sign quality compared to the Attack have always been system. It is also built with servo reversing switches.

INCLUDES:

One Futaba 4EX Transmitter with transmitter and receiver crystals
R115F Receiver
S3003 Servos x 3
NT8JY TX NICD 9.6V 4NBL BF BP
FBC8B4 CHARGER J-SERIES FM
NCC4 RX CHARGE CORD J FM
ANT5 TX AT 2PB KA NCS 3PB 4NBL

SPECS:

Transmitter:

Modulation: FM (Regularity Modulation)
Present Drain: 250mA

R115F Receiver:

Size: 1.4" x 2.1" x 0.85" (33.4??50.4??20.5mm)
Body weight 1.03 oz. (29.5g)
MHz: 40 / 72MHz

S3003 Servo:

Torque: 44 oz-in (3.2 kg-cm) @ 4.8V / 57 oz-in (4.1 kg-cm) @ 6V
Speed: 0.23 sec/60?X @ 4.8V ~ 0.19 sec/60?X @ 6V
Dimensions: 1.6" x 0.8 x 1.4" (40 x 20 x 36mm) w/o production shaft
Weight: 1.3oz (37g)
