Futaba 6EXAP 6-Channel FM 40MHz/ R136F/ 4xS3003  [6EXAP_C1]

FEATURES:

• Aileron, Elevator and Rudder double price switch - utilize this change to flip between two aileron, elevator and rudder control throw settings. The throws could be arranged however you prefer, but generally, whenever switch is up the throws are greater (higher rate) when the switch is down the throws are less (low price). This switch additionally flips between exponential prices (if used).
• Flap control dial/Channel 6 - This dial operates the servo linked to channel 6 in the receiver when your model has flaps this is the control used to operate them.Aileron/elevator control stick -Mounting point for optional neck strap.
• Trim levers (all) -Used to shift the neutral or center place of each servo as labeled inside diagram.
• Asking jack - Port for billing the transmitter batteries utilizing the included battery pack charger.
• On-off switch
• DATA INPUT lever - accustomed replace the values of this various functions displayed regarding LCD display.
• Liquid-crystal screen (LCD) - Displays programming modes and values entered.
• MODE key - regularly scroll through and display the ten or eleven(PCM) various functions.
• SELECT key - regularly show the values the present function.
• Throttle-cut switch - to utilize the throttle-cut function, lower the throttle stick completely, then drive the throttle-cut key to totally close the carburetor and shut for the engine.
• Throttle/rudder control stick - Operates the servos linked to channel 3 (throttle) and channel 4 (rudder) within the receiver.
• Trainer switch - runs the trainer functions. To operate as a trainer switch the transmitter must certanly be attached to another transmitter via. a trainer cord (available separately).
• Retractable landing gear switch/Channel 5 - change runs the servo connected to channel 5 into the receiver in case your model has retractable landing gear this may be the control used to expand and retract the gear.
• Antenna - Radiates signals to the receiver. Never travel a model without fully expanding the antenna or perhaps you may create interference to many other modelers and decrease functional sign range of the transmitter. The antenna might be removed and replaced with another in the event it's accidentally broken.

INCLUDES:

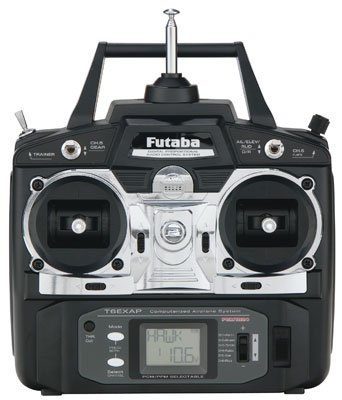

• Futaba 6-Channel 6EXAP transmitter
• Futaba R136F Receiver
• Four Futaba S3003 Servo
• Change Harness
• Handbook

SPECS:

Transmitter

• T6EXAP Transmitter with programmable blending and 6-model memory.
• Transmitting on 40 / 72 MHz musical organization.
• Os: 2-stick, 6-channel system
• Modulation: FM(PPM) and PCM
• Power supply: 9.6V NT8S600B Ni-Cd battery pack or 12V alkaline battery pack
• Current drain: 250mA

Receiver

• R136F slim musical organization, FM 6 channel receiver.
• Getting on 40 / 72 MHz musical organization.
• Type: FM, Dual conversion/FM, Solitary transformation
• Intermediate frequencies: 455kHz, 10.7MHz/455kHz
• Power requirement: 4.8V or 6V
• Present drain: 9.5mA @ 4.8V
• Size: 1.31 x 1.98 x 0.71" (33.4 x 50.3 x 18.1mm)
• Weight 0.98oz (27.8g)

Servo

• S3003 standard servo with mounting equipment and servo supply assortment
• Control system: Pulse width control,1.52ms neutral
• Power requirement: 4.8 or 6V (from receiver)
• Production torque: 44.4oz-in [3.2kg-cm] @4.8V
• Running rate: 0.23sec/[email protected]
• Size: 1.59x0.78x1.41" [40.4x19.8x36mm]
• Body weight: 1.3oz (38.0g)
