Futaba 6JA 6-Channel 2.4GHz S-FHSS Air/R2006GS (Airplane)  [6JA_01]

Blazing Speed. Red-hot Value

In S-FHSS mode, the 6J’s frame rate is just 6.8ms, a reply speed unmatched by every other 6-channel flight system. Nevertheless the 6J isn’t more or less rate; it’s also one of the better values you’ll find anywhere.

It’s a straightforward and natural step-up from a 4-channel system. And in case you currently obtain a 6-channel, it’s a great investment with a variety of high-end features that goes far beyond everything’d expect. Start with 15-model memory. Throttle and pitch curves for airplanes also helis. Electronic swash band for helis, and four swashplate options.

Along with the blazing rate, absolute affordability and unequaled value, the 6J also provides the rock-solid protection and dependability of Futaba FHSS technology.

The R2006GS auto-adapts to the transmission mode chosen, whether it’s FHSS or high-speed S-FHSS mode. And as it runs on an array of voltage, you don’t need a regulator even though you utilize a 2S, 7.4V LiPo pack as a power source.

Listed here are just some of the features that produce the 6J among the best trip system values around!

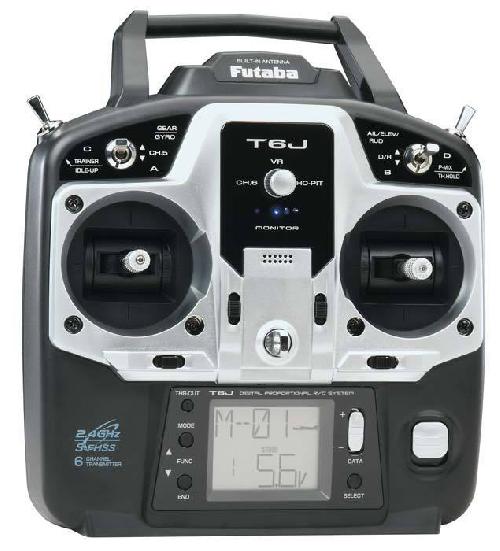

• The 6J faceplate looks neat and uncrowded, yet sets sticks, the development secrets while the rotary knob within easy reach. A built-in antenna prevents breakage and damage.
• Angled for a better, easier grip, and balanced for effortless throat strap usage, the 6J’s instance also features a broad, flat base which makes it stand solidly when you set it straight down. Other features consist of a charging jack on the side and a square micro-port for a trainer cord regarding the backplate.
• A large 40 x 30 LCD offers more info and easier watching at a glance. You can see model title, quantity and kind, voltage, modulation (and much more) on your home screen; push CHOOSE while start to see the timer!
• In the event that you scroll by the big event you want, not a problem; it is possible to navigate through menus ahead and backward with similar simplicity.
• A lot of the 6J’s mixing functions may be assigned to the switch you choose, to adjust the control setup to your type of flying.
• The 6J’s rotary knob can be utilized for a fully proportional 6th channel, fine-tuning hover-pitch or scale flaps. It also actually leaves room for an added programmable mix you are able to activate using the flip of this switch.

System features:

• 15-model memory
• 4-character model naming
• Simple 1-lever/3-button development
• Data reset
• Airplane & heli pc software
• FHSS/S-FHSS modes
• Mode 1-4 selectable
• 127-segment, 40 x 40 LCD
• Digital trims/trim memory
• Endpoint modification (EPA), sub-trims & servo reversing
• Twin prices & exponential (ail/ele/rud)
• Fail-safe (all stations; in S-FHSS mode just)
• Throttle cut
• Trainer system (cord needed)
• Throttle place, mix & low battery pack warnings
• Up/down & model timer
• Number check mode
• R2006GS S-FHSS Receiver

Airplane Qualities:

• 2 programmable mixes, plus:
• (2) 5-point throttle curves
• (2) 5-point pitch curves
• Flaperon w/differential rate
• Flap trim (2 rates)
• V-tail mixing
• Elevon mixing

Requirements:

• 4 “AA” cells
• Servos (FUTK6000 just)

Transmitter Specifications:

• Type: 2-stick, 6-channel, FHSS/S-FHSS selectable
• Present Drain: 170mA

Receiver Requirements:

• R2006GS 2.4GHz S-FHSS 6-Channel Receiver
• Type: Full-range trip receiver
• Modes: FHSS or S-FHSS
• Features: Easy-Link™ binding, high-voltage procedure, frequency-hopping, spread-spectrum design & twin Antenna variety
• Voltage Input: 4.8V-7.4V
• Appropriate Batteries: NiCd, NiMH, LiPo, LiIon & Lifetime
• Measurements: 1-11/16 x 15/16 x 516 in (43 x 24 x 7.9 mm)
• Weight: 0.29 oz (8.3 g)
• Current Drain: 80mA (@ no sign)
• Stock #: FUTL7606
