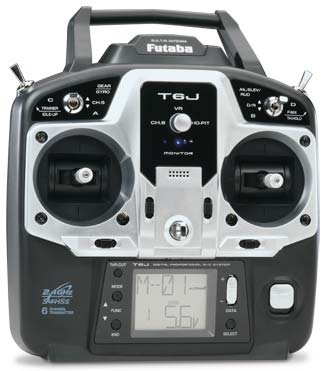

Futaba 6JH 6-Channel 2.4GHz S-FHSS Heli/4 S3001 Servos  [6JH_01]

Blazing Speed. Red-hot Value

In S-FHSS mode, the 6J’s frame price is merely 6.8ms, a response rate unrivaled by any 6-channel journey system. However the 6J isn’t more or less speed; it’s also among the best values you’ll find anywhere.

It’s a simple and natural intensify from a 4-channel system. And in case you already own a 6-channel, it’s a great investment with a selection of high-end features that goes far beyond that which you’d expect. Start with 15-model memory. Throttle and pitch curves for airplanes also helis. Electronic swash ring for helis, as well as four swashplate options.

And with the blazing rate, absolute affordability and unequaled value, the 6J now offers the rock-solid protection and dependability of Futaba FHSS technology.

The R2006GS auto-adapts towards the transmission mode chosen, whether it’s FHSS or high-speed S-FHSS mode. And since it operates on a wide range of voltage, you don’t require a regulator even if you use a 2S, 7.4V LiPo pack as an electric supply.

Here are just a few of the features that produce the 6J one of the better trip system values around!

• The 6J faceplate appears neat and uncrowded, yet sets sticks, the programming secrets and the rotary knob within easy reach. An integral antenna stops breakage and harm.
• Angled for an improved, easier hold, and balanced for simple throat strap use, the 6J’s instance additionally features an easy, flat base that makes it stay sturdily whenever you set it straight down. Other features consist of a charging jack privately and a square micro-port for a trainer cord on the backplate.
• A huge 40 x 30 LCD offers more details and easier watching at a glance. You can observe model title, quantity and kind, voltage, modulation (and much more) on the home display screen; push SELECT therefore see the timer!
• If you scroll by the event you would like, no issue; it is possible to navigate through menus forward and backward with the exact same ease.
• Most of the 6J’s mixing functions may be assigned toward switch you prefer, in order to adjust the control setup to your style of flying.
• The 6J’s rotary knob can be utilized for a fully proportional 6th channel, fine-tuning hover-pitch or scale flaps. It will leave space for an added programmable mix you can trigger because of the flip regarding the switch.

System features:

• 15-model memory
• 4-character model naming
• Simple 1-lever/3-button development
• Data reset
• Airplane & heli computer software
• FHSS/S-FHSS modes
• Mode 1-4 selectable
• 127-segment, 40 x 40 LCD
• Digital trims/trim memory
• Endpoint modification (EPA), sub-trims & servo reversing
• Dual rates & exponential (ail/ele/rud)
• Fail-safe (all networks; in S-FHSS mode only)
• Throttle cut
• Trainer system (cord needed)
• Throttle position, mix & low battery pack warnings
• Up/down & model timer
• Number check mode
• R2006GS S-FHSS Receiver

Heli Qualities:

• (2) 5-point throttle curves
• (3) 5-point pitch curves
• Throttle hold
• Hover pitch
• Gyro mixing
• Revo mixing
• 4 swash plate types (H1, H3, HR3 & H3 w/AFR)
• Swash AFR (ail/ele/pitch)
• Throttle mix
• Electronic swash ring
• Throttle delay
• Pitch wait

Needs:

• 4 “AA” cells

Transmitter Requirements:

• Type: 2-stick, 6-channel, FHSS/S-FHSS selectable
• Present Drain: 170mA

Receiver Requirements:

• R2006GS 2.4GHz S-FHSS 6-Channel Receiver
• Type: Full-range trip receiver
• Modes: FHSS or S-FHSS
• Features: Easy-Link™ binding, high-voltage operation, frequency-hopping, spread-spectrum design & double Antenna variety
• Voltage Input: 4.8V-7.4V
• Compatible Batteries: NiCd, NiMH, LiPo, LiIon & Lifetime
• Proportions: 1-11/16 x 15/16 x 516 in (43 x 24 x 7.9 mm)
• Weight: 0.29 oz (8.3 g)
• Present Drain: 80mA (@ no sign)
• Stock #: FUTL7606
