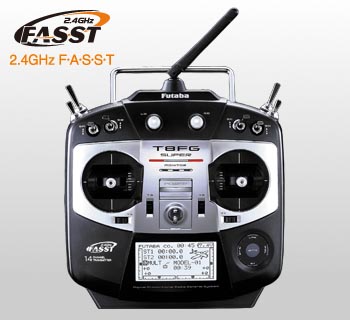

Futaba 8FG Super 2.4GHz Computer Systems  [8FGSuper]

"Super-sized" with increased channels - and CGY750 gyro support!

The initial 8FG had been top 2.4GHz radio value available. Now, for the same expense, the 8FG Super provides six additional channels plus brand new pc software with menus tailored to Futaba's super-fast CGY750 gyro. Suggested by Bobby Watts, Matt Botos and Kyle Stacy, it's the initial radio that basically supports flybarless helicopters. Plus it's ideal for all the applications, too...a smart choice for ANY forward-looking flier.

Features:

• Expanded with 14 total transmitter channels X 12 proportional and two switched.
• Included R6208SB receiver's PWM (Pulse Width Modulation) stations support up to 8 standard analog or digital servos also it handles as much as 18 stations whenever used with an S.Bus system.
• Gyro menu supports 3-axis gyros and it is perfectly tailored towards the CGY750.
• User menu enables pilots to customize and display frequently employed functions.
• VPP (adjustable Pitch Propeller) compatibility can be set to three conditions for throttle and pitch curve.
• Swash trim may be modified from swash display.

Continued from the original 8FG:

• SensorTouch™ programming maximizes navigation simplicity.
• Numerous factory-defined mixes allow you to program like a pro.
• Minimal latency and cutting-edge 2048 quality combine for fast, accurate Real-Time Response™.
• Accepts 32MB to 2GB SD memory cards* add as much memory while you want.

*SD memory not included

Overview:

• 12 proportional stations
• 2 switched networks
• Built-in FASST 2.4GHz design
• 2048 resolution
• SensorTouch™ programming
• Airplane, heli & glider pc software
• 20-model internal memory, unlimited with sdcard
• Compatible with 32MB to 2GB SD Memory Cards*
• Mode 1-4 selectable
• Customizable individual menu
• Immediate access to timers, channel mode & model selection
• 2-touch use of system, linkage & model menus
• Assignable switches/functions
• 10-character user & model naming
• Model select, copy & reset
• Information transfer
• All-channel & battery pack fail-safes
• Sub-trims, servo reversing, dual rates, expo & EPA with separate restriction settings
• Digital trims & memory, with step or % display option
• 128 x 64 backlit LCD w/auto-off timer, normal/large timer display options, adjustable comparison & brightness
• Servo period w/bar graph shows
• Model & system timers
• Trainer system w/channel/function choices
• Sticks w/ball-bearing gimbals, length & stress corrections
• Stick calibration menus

Airplane Features:

• 7 wing types
• 5 programmable mixes, plus:
• Aileron/Rudder mix
• Rudder/Aileron mix
• Rudder/Elevator mix
• Snap roll
• Gas mix
• 5-point throttle bend
• Throttle wait
• Gyro Function w/up to 3 gyro prices
• Motor menu w/speed adjustment
• adjustable pitch prop support

Glider Features

• 10 wing kinds
• 5 programmable mixes, plus:
• Aileron/Rudder mix
• Rudder/Aileron mix
• 5 conditions w/delay per channel
• 4 virtual blending channels
• Gyro functions w/separate prices for 3 gyros
• engine menu w/speed adjustment

Helicopter Features

• 6 swash plate kinds
• 5 programmable mixes, plus:
• 4 swash mixes (aileron/elevator, elevator/aileron, pitch/aileron & pitch/elevator)
• 3 throttle mixes (to aileron, elevator & rudder)
• 5-point throttle & pitch/rudder blending
• 5 conditions w/delay per channel
• 5-point throttle & pitch curves
• Throttle hold
• Hovering throttle & pitch
• High/low pitch prices
• 3-Axis gyro help with 3 various rates
• Governor functions

R6208SB 2.4GHz FASST 8/18 Channel S.Bus High-Voltage Receiver

• The 8FG Super's R6208SB receiver takes many batteries, from 4-cell NiCd and NiMH packs to 2S lifetime and LiPo packages, with no regulator required. PWM (Pulse Width Modulation) channels offer help for approximately eight standard analog or digital servos. Utilizing the S.Bus slot, it handles up to 18 channels and makes incorrect servo-channel hookups impossible. The R6208SB also features a high-speed mode that provides ultra-fast framework prices on channels 1-6.
• High-speed mode is available only on Channels 1-6 and requires the use of electronic (including brushless digital) servos. Networks 7 and 8 which operate just in normal mode could be equipped with either analog or digital servos.
