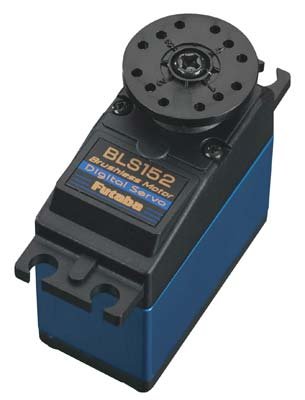

Futaba BLS152 Brushless Super High Torque Air Servo  [BLS152]

QUALITIES:

• At the least five times are more durable than brushed servos
• Double ball bearings and Samarium cobalt magnets
• Smoother procedure and greater opposition to jolts and vibration
• Exact same energy consumption as brushed digital servos
• Aluminum center instance

INCLUDES:

Futaba BLS152 Servo with 0.83" (21mm) round horn, 1.8" (45mm) round horn, 1.5" (39mm) 4-point horn, 1.2" (32mm) 6-point horn, four rubber grommets, four steel eyelets and four 1.5 x 12mm mounting screws, instruction sheet

REQUIRES:

Installing in aircraft, linking linkage and linking to receiver

SPECS:

• Speed: 0.14 sec/60?X at 6V
• Torque: 430.6 oz-in (31.0kg-cm at 6V)
• Size: 1.59 x 0.83 x 1.51" (40.5 x 21 x 38.4mm)
• Body weight: 2.58oz (73g)
• Horn Set Screw Size: 3x8mm

REMARKS:

The BLS152 is designed for high torque applications in major models. Quite high current drain is normal at startup. Always utilize a 5-cell NiCd battery for most readily useful performance.

For full performance of digital servos utilize them just with PCM and FASST systems. Do not use electronic servos with AM systems.
