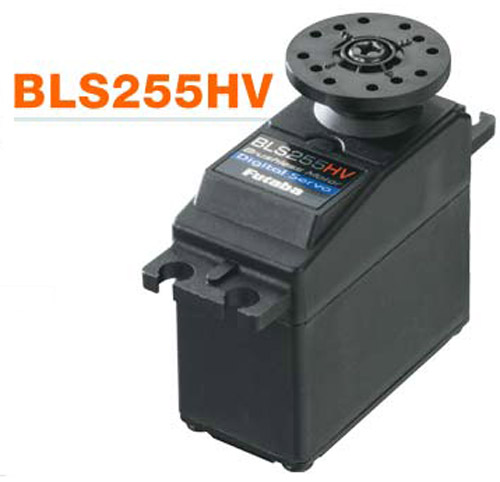

Futaba BLS255HV High Voltage High Speed Servo  [BLS255HV]

• This is actually the Futaba BLS255HV High Voltage High Speed Digital Servo.
• The BLS255HV is made for high torque/high speed applications.
• High current drain is normal at startup. Always utilize a 6V - 7.4V battery pack.

Features:

• Ideal for swash plate control on flybarless CCPM helis
• Dual bearings and metal gears for smooth lasting operation Handles around 2S LiPo electric batteries

Includes:

• Futaba BLS255HV Servo
• 0.83" (21mm) Diameter Round Horn
• 1.8" (45mm) Diameter Round Horn
• 1.6" (38.5mm) Diameter 4-Point Horn
• 1.2" (32mm) Diameter 6-Point horn
• Mounting Hardware

Requires:

• Installing in heli, connecting linkage and linking to receiver

Specs:

• Speed: 0.10 sec/60 Degree at 6.0V
• 0.08 sec/60 Degreeat 7.4V
• Torque: 147.2 oz/in (10.6 kg/cm) at 6.0V
• 166.7 oz/in (12.0 kg/cm) at 7.4V
• Size: 1.57 x0.79 x 1.45" (40 x 20 x 36.8mm)
• Body weight: 2.12oz (60g)
• Power Supply: 6.0 - 7.4V DC
