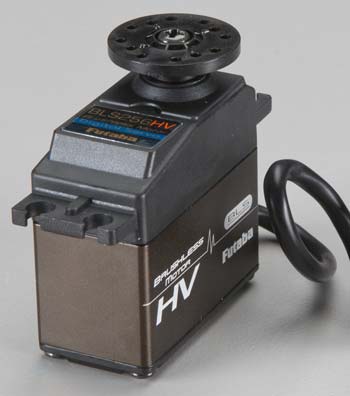

Futaba BLS256HV - High Voltage High Speed Servo  [BLS256HV]

• Made for rudder control in Futaba top end gyros
• Brushless engine
• Handles around 2S LiPo battery power

INCLUDES:

• Futaba BLS256HV Servo
• 0.83" (21mm) Diameter Round Horn
• 1.8" (45mm) Diameter Round Horn
• 1.6" (38.5mm) Diameter 4-Point Horn
• 1.2" (32mm) Diameter 6-Point horn
• Mounting Hardware

NEEDS: Installing in heli, connecting linkage and connecting to gyro

Specs and Features

• Speed: 0.055 sec/60 level at 6.6V, 0.050 sec/60 degree at 7.4V
• Torque: 61.1 oz/in (4.4 kg/cm) at 6.6V, 69.5 oz/in (5.0 kg/cm) at 7.4V
• Size: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
• Body weight:2.15oz (61g)
• Power Supply: 6.0 - 7.4V DC

REMARKS

The BLS256HV was created limited to gyro rudder control. Dead musical organization is scheduled as narrowly that you can. As soon as the fuselage is static, the servo may jitter. This condition is normal.
High present drain is normal at startup. Always utilize a 6V - 7.4V battery pack.
