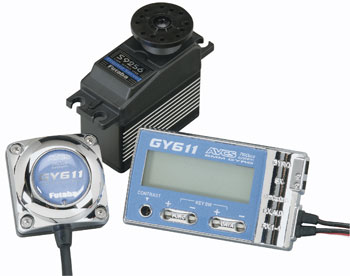

Futaba GY611_S9256 - GY611 Gyro + S9256 Servo  [GY611_S9256]

This is actually the Futaba GY611 Gyro with the S9256 Digital Servo.

FEATURES:
Super slim pulse drive system considerably improves servo response

Microcomputer high-speed arithmetic processing substantially improves gyro reaction

High-resolution 12-bit A/D (Analog to Digital) accurately converts sensor output to a Digital Signal

SMM (Silicon Micro Machining) micro-machining technical parts and systems right on a silicon chip and also low-back aeroform situation improves vibration opposition and neutral attribute

AVCS (Angular Vector Control System) (just like Heading Hold) system calls for a high-precision angular velocity detection function and intensely little production drift simply by using a new sort of gyro sensor.

This minimizes rudder neutral position drift during flight and eliminates the should cut the rudder during journey.

Futaba S9256 (FUTM0226) Digital Servo is completely suitable for super narrow pulse drive and features high reaction (.06 sec/60�X) and Alumite case with temperature sink to cool the motor

INCLUDES:
Futaba GY611 sensor, control amp, S9256 servo, mini screwdriver, 3 sections increase sided tape and instruction sheet

NEEDS:
4.8V Rx battery pack ONLY (greater voltage could damage the servo)
Assembly and adjustment onto the helicopter

SPECS:
GY611 Ratings: Yaw-axis stabilizer for helicopter (rate gyro)
Display Device: 8-character dot matrix Liquid Crystal Show
Running Voltage Range: DC 3.8V to 5V
Current Drain: 70mA @ 5V, including sensor
Measurements: Amp 2.2"x 1.2"x .59" (57 x 32 x 15mm)
Sensor 1.2"x 1.2"x .71" (30 x 30 x 18mm)
Body weight: Amp 1.19oz (34g) / Sensor 1.05oz (30g)

S9256 Servo
Proportions: 1.6"x .79"x 1.4" (40 x 20 x 36.6mm)
Weight: 2.01oz (57g)
Speed: .06 sec/60�X (at 4.8V)
Torque: 47 oz-in (3.4 kg-cm) (at 4.8V)
