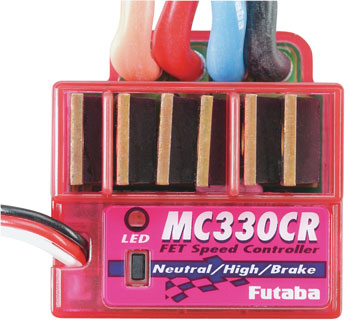

Futaba MC330CR ESC w/Reverse 13+T  [MC330CR]

This might be a MC330CR Electronic Speed Control w/ Reverse for 13+ Turn Motors.

QUALITIES:

• Operates engines which can be 13 turns up to 27 turns
• All connectors are pre-installed
• Reverse Disable causes it to be legal for rushing

INCLUDES:

One MC330CR Electronic Speed Control w/ Reverse and Brake/ Futaba J receiver connector, Standard battery pack connector, ON/OFF Switch. One Plastic Adjustment Screwdriver

NEEDS:

• Futaba J appropriate receiver
• Feminine bullet engine connectors for motor, use TRIC5500.

SPECS:

• Ability: 6 to 7 cellular batteries
• Engine Limit: 13+ turns
• Current- Forward: 200A Reverse: 100A
• On-resistance: .010 Ohms
• Tall Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for battery, Bullet engine (all pre-installed)
• Bullet Engine Wire: 14 gauge
• BEC: Yes
• Length: 1.07"
• Width: .50"
• Height: 1.31"
• Weight: 1.59oz

REMARKS:

Generally, high-torque and brushless servos for steering control may be used with this ESC provided that the continuous present draw regarding the servo will not go beyond 1A constantly. Don't use the Futaba S9157 high-torque servo with this ESC as this servo attracts over 3A."
