Futaba MC401CR ESC w/Reverse  [MC401CR]

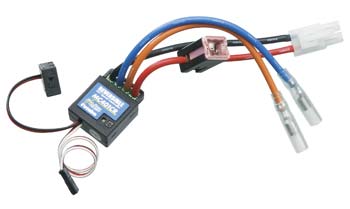

This is the Futaba MC401CR Electronic Speed Control with Reverse for motors with 10 turns and above.

FEATURES:

• SMD MOSFETs with tiniest interior opposition for minimal loss and optimum performance
• Ahead, Reverse, and Brake operations are linear
• Reverse operation termination function
• Temperature and low voltage protection
• Serial port communication with a Computer (Futaba CIU-2 Interface, FUTM0951 required)
• Serial interaction function-
• Information logging read and erase (Information signing memorizes the operating current and power voltage for approximately 8-minutes at 2nd intervals)
• Variable frequency range settings: 100Hz to 10kHZ (Sets the load response system variable frequency range)
• Dead band: ??2μs ~ ??55μs (Neutral point range could be set)
• Low battery pack protection voltage setting: 2.5V ~ 6V (Sets the voltage which cuts the production toward motor as soon as the power voltage is dropped)
• Present Limiter: 50A ~ 300A (The current limitation for suppressing power can additionally be set and switched off)
• Brake mix: 0% ~ 100per cent (Sets the braking system energy regarding the maximum braking system point from neutral)
• Neutral braking system: 0percent ~ 100% (Brake establishing within throttle neutral point)

INCLUDES:

Futaba MC401CR Electronic Speed Control with Reverse

REQUIRES:

Installing in vehicle and linking to engine, receiver and battery pack NiCd or NiMH battery 4 - 6 cells (4.8V - 7.2V)

SPECS:

• Operating system: Forward and brake (Resolution 255)
• Energy requirement: NiCd, NiMH battery pack 4~6 cells (4.8 ~ 7.2V)
• PWM frequency-
• Forward: 100Hz ~ 10kHz Initial value: 2.5kHz ~ 3kHz
• Brake: 2kHz
• BEC voltage: 6V
• Setting: One-touch switch
• Present capability: FET rating
• Ahead: 360A (Momentary load: 440A)
• Brake: 120A
• Fuse: 30A
• Battery reverse protection/overload protection
• Case size: 1.01 x 1.03 x .51" (25.7 x 26.2 x 12.9mm) (excluding protruding components)
• Silicone wire gauge size: 14AWG equivalent
• Weight: .39oz (11.2g)
