Futaba R114F 4-Channel FM Rx 40MHz High with Short Crystal  [R114F]

Futaba (#R114F) - Futaba 4-Channel FM Rx 40MHz tall with brief Crystal

NOTES FROM OUR TECH DEPARTMENT

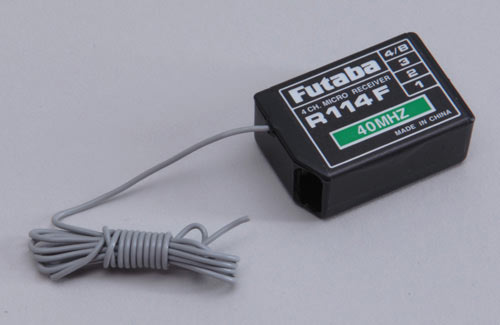

This is a R114F 4-Channel HI 40MHz FM Receiver "With Crystal" from Futaba.

FEATURES:

Narrow-band spacing and superior sign filtering combined to
provide exceptionally clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who would like to make use of an individual radio transmitter
to run several different models.
Perfect for Park or slowly Flyers.
Range of around 650 feet (200m)

SPECS: Narrow Band: 20kHz
Power Requirements: 4.8 to 6.0 volts (shared with servos)
Current Drain: 10mA
Length: 1-1/4" (31.75mm)
Width: 1/2" (.02mm)
Height: 7/8" (.28mm)
fat: 0.35 oz (9.9g)

COMMENTARY: Special Notice about Frequency Changes-
*72MHz- Low musical organization channels 11 to 35; High musical organization channels 36 to 60.
Receiver crystal channels (11-35 or 36-60) Within Each Band
Can stay Changed, and don't Require a retuning for the receiver.
*72MHz Frequency Band (low or high) the receiver cannot Be
Changed from low to high musical organization, OR from high to low band without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz regularity Bands cannot under any
circumstances be interchanged with one another. The receiver Must
be sent in for retuning toward appropriate band.
*50MHz, 27MHz and 75MHz receiver crystals is changed anywhere
within the respective bands. There are not any high or low bands such
as the 72MHz band has.
*Transmitter Crystals can't be changed to some other channel except
by an authorized solution center. It's against FCC laws, and
illegal for the individual to improve a frequency determining component
of a transmitter. In the event that radio isn't retuned, it could be a hazard
spectators, modelers or property, and void AMA insurance coverage.
*Check with all the regional R/C club for the frequencies used in your area.
