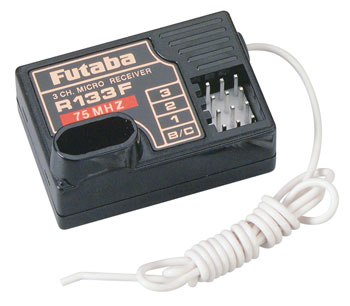

Futaba R133F 3Ch FM 75MHz with Crystal  [R133F]

Futaba (#R133F) - Futaba R133F 3Ch FM 75MHz with Crystal

NOTES FROM OUR TECH DEPARTMENT

This really is a Futaba R133F 3 Channel Micro FM Receiver with Crystal.

SPECS: Length: 1-1/2" (38mm)
Width: 1" (25mm)
Height: 5/8" (16mm)
Weight: 0.72 oz.
Frequency: 75MHz
Frequency Spacing: 20kHz

COMMENTS: For R133F on 27MHz
Unique Notice about Frequency Changes-
*72MHz- Low band channels 11 to 35; tall musical organization networks 36 to 60.
Receiver crystal channels (11-35 or 36-60) Within Each Band
Can Be Changed, nor need a retuning for the receiver.
*72MHz Frequency Band (low or high) for the receiver Can Not Be
Changed from low to high band, OR from high to low musical organization without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz Frequency Bands can't under any
circumstances be interchanged with one another. The receiver Mus
be sent in for retuning on appropriate band.
*50MHz, 27MHz and 75MHz receiver crystals is changed anywhere
within the respective bands. There are no high or low bands such
as the 72MHz band has.
*Transmitter Crystals cannot be changed to some other channel except
by an authorized service center. It's against FCC laws, and
illegal the user to change a frequency determining component
of a transmitter. If the radio is not retuned, it can be a hazard
spectators, modelers or home, and void AMA coverage.
*Check with all the neighborhood R/C club the frequencies utilized in your area.
