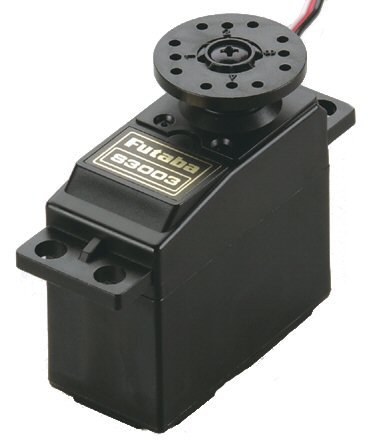

Futaba S3003 Standard Servo Digital  [S3003]

• This is actually the Futaba S3003 Standard Servo, that is is employed for automobiles, boats, or in which standard servos are employed.
  This is the alternative to these servos, S138,S148,S22,S38 and S12.
  It can produce high-current draw from your own batteries if making use of NiMH or LiPo, get them to with the capacity of delivering enough amps.

Includes:

• One S3003 standard servo with preinstalled round servo horn FUTM0031
• Four brass eyelets
• Four Black rectangular plastic grommets (FUTM2348)
• Four servo mount screws
• One servo wheel 1-3/8" (35mm) in diameter
• One X-shape servo arm 1.5" (38mm) across
• One star shaped arm 1-1/4" (32mm) across
• Nylon gears

Specs and Features:

• Speed: 0.23 sec/60 Degree @ 4.8V , 0.19 sec/60 Degree @ 6V
• Torque: 44 oz-in (3.2 kg-cm) @ 4.8V
• 57 oz-in (4.1 kg-cm) @ 6V
• Measurements: 1.6" x 0.8 x 1.4" (40 x 20 x 36mm)
• Weight: 1.3oz (1-5/16oz) (37g)
• Connector: "J" type with approx. 5" lead
