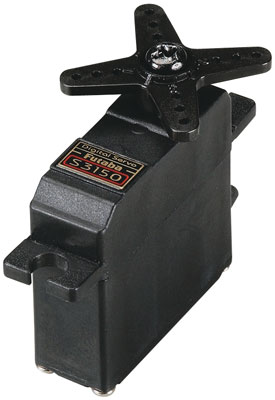

This is actually the Futaba S3150 Slim Digital Aileron Servo with J Connector.
Designed for aileron applications on gliders, jets, and electric planes.
This servo can produce high-current draw from your batteries.
If using NiMH or Li-Po batteries, cause them to become capable
of delivering enough Amps.
QUALITIES: Coreless motor
2 ball bearings
Digitally enhanced microprocessors cut about 50 % the reaction time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Compact design is particularly suited for simple installation inside
the wing of smaller gliders, jets and electric planes.
Black synthetic case
One year warranty
INCLUDES: One S3150 Digital Slim Digital Servo, one 1" (26mm) star shaped
horn, one 1.5mm (39mm) star shaped horn, one 1.8" (45mm) straight
arm, one 1.4" (35mm) diameter horn, two each-screws, eyelets, and
grommets
SPECS: Speed: 0.25 sec/60 deg @ 4.8V
Torque: 51.4 oz/in @ 4.8V
Dimensions: 1.1x0.5x0.8 in (28x13x19.7mm)
fat: 0.78 oz (22g)
power: 4.8V (Futaba doesn't recommend making use of 6V)
FEEDBACK: S3150 Digital Servo Precautions,
-It is most beneficial in order to avoid long leads and Y-harnesses especially with
standard grade cables. If issues are experienced, consider using
heavy duty cable such as Futaba's high quality Series or Hobbico's
Pro Series,minimizing lead lengths, and/or getting rid of Y-harnesses.
-Current Drain: This electronic servo is specially designed for high-
torque or high-speed, for that reason high present drain is normal
at startup. For ultimate performance when using this servo please
review these points.
1. Radio systems with all the Battery Fail secure function have actually a
higher cut-off voltage setting that may cause shorter
operation time.
2. When setting up the servo, please always check pushrod linkage to
make sure there is absolutely no binding to be able to avoid excessive
power usage and decrease the life of this engine and
battery.
An email on coreless motors. A conventional servo motor has a steel
core armature wrapped with wire that spins in the magnets. In
a coreless design, the armature utilizes a thin wire mesh that types a
cup that spins round the outside of the magnet eliminating the
heavy metal core. This design results in smoother operation and
faster reaction time.
This electronic servo can not be used with the following * have always been *
transmitters as the servo basic signal is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they'll work fine with current AM systems *****
