Futaba S9255 High-Torque Heli Digital Servo  [S9255]

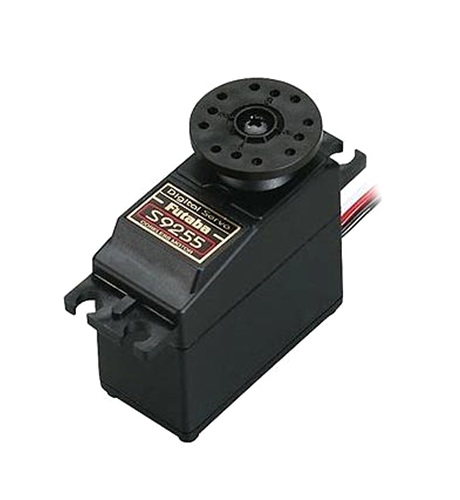

Here is the Futaba S9255 Digital High-Torque Servo for helicopter use.

QUALITIES:

• Comes with heavy duty wiring that can manage higher current lots
• Ball bearing production shaft
• Steel gears
• Coreless engine, the standard servo engine has a metal core armature wrapped with cable that spins inside magnets. In Coreless designs, the armature uses a thin cable mesh that forms a cup that spins round the not in the magnet eliminating the heavy steel core. This design is significantly lighter resulting in smoother procedure and quicker response time.
• Tall torque

INCLUDES:

• One Digital High Torque Servo w/Small Round Horn and 11.5" (292mm) wire lead
• Four Rectangular Grommets
• Four Chrome Bushings
• Four Mounting Screws
• One Large Round Horn
• One Six Supply Horn
• One Four Supply Horn

SPECS:

• Speed: .16 sec/60?X @ 4.8V
• Torque: 125 oz-in (9.0 kg/cm) @ 4.8V
• Body weight: 1.9oz (55g)
• Proportions: 1.6 x 0.8 x 1.4" (40 x 20 x 37mm)

FEEDBACK:

• Case Set FUTM3030
• Gear Set FUTM3463
