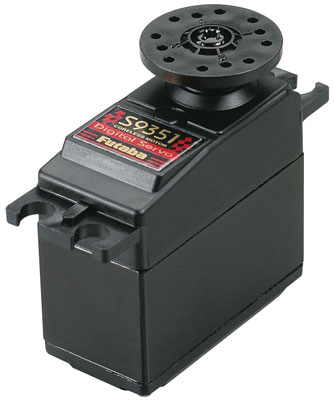

Futaba S9351 Digital High Torque Servo  [S9351]

QUALITIES:
Includes durable wiring that may manage greater active lots
Brand new Metal casing which really helps to dissipate heat
Coreless Engine
Tall Torque
Metal gears
Perfect for 1/8 Cars or ships in which Higher Torque and Speed are Needed
Twelve months limited warranty

INCLUDES:
One Digital High Torque Servo w/Small Round Horn and 7.5" (190mm) wire lead
Two Rectangular Grommets
Four Chrome Bushings
One "T" Horn

SPECS:
Speed: 0.16 sec/60�X @ 4.8V
0.13 sec/60�X @ 6V
Torque:153 oz-in @ 4.8V
192 oz-in @ 6V
Measurements: 1.6 x 0.8 x 1.4" (40 x 20 x 37mm)
Body weight: 2.2oz (61g)

COMMENTS:
If Gear Set will become necessary FUTM3460
If First Gear only is required FUTM3500
For Grommets FUTM2346
For Eyelets FUTM2347
For Mounting Screws FUTM2250

S9351 Digital Servo Precautions,
-It is better to prevent long leads and Y-harnesses particularly with standard grade cables. If issues are encountered, consider using heavy duty cable such as Futaba's durable Series or Hobbico's Pro Series, minimizing lead lengths, and/or eliminating Y-harnesses.

-Current Drain: Futaba S9350 Servo is especially made for High-Torque and High-Speed, For That Reason Quite High Active Drain Is Normal At Startup. For Ultimate Efficiency When Working With This Servo Please Review The Following Points.

(1) when working with Systems because of the Battery Fail Safe Function this has an increased Cut-Off Voltage Setting Which Will Cause Shorter Procedure Time.

(2) When Setting Up the Servo Please Check Pushrod Linkage To Ensure There Is No Binding so that you can Prevent Excessive energy Consumption and Decrease the Life of the Motor and Battery.

This digital servo may not be combined with the following * AM * transmitters while the servo basic sign is: 1310us). CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
