HOBBYWING EzRun 4274/4268 - 30402500  [HW-30402500]

High Torque

The 4 pole design will guarantee the motor to produce very large amounts of torque,
a faster acceleration response and a very stable production of power to the drivetrain.

Tall Efficiency

Hobbywing’s heat control technology was designed to protect the motor
from being damaged by heat therefore less temperature better the motor will run and
perform. The output performance with this engine has an efficiency rate all the way to 90%
and therefore in the event that energy usage of the engine reaches 1000 watts your assured
that 900 watt of this power will likely be available no less.

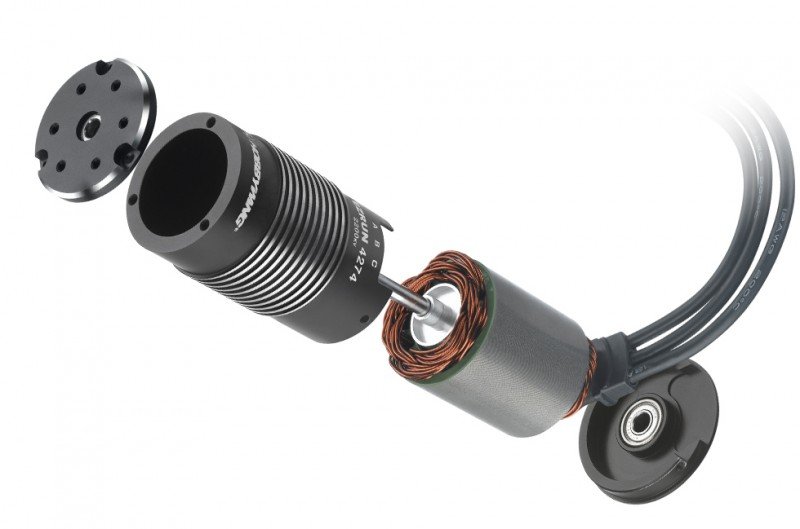

Great Construction

The motor housing is made of difficult anodized aluminum, motor windings are
wound from pure oxygen-free double insulated copper wire, the advanced rotor
framework is made to handle high temperature through the usage of rare planet
magnets, production shaft from good quality refined alloy steel plus the imported
bearings which are implemented are high precision steel caged for a minimum
to zero friction which will guarantee strength, outstanding performance,
high durability and smoothness regarding the motor.

Compatible (with the EZRUN MAX8 ESC)

When combining the EZRun 4274 motor aided by the Hobbwing EZRun MAX8 (150amp) ESC,
the excellent match between ESC and motor will provide you with big torque plus a very
smooth and linear power musical organization.

Item Specification

Type

• Scale : 1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Pole Count : 4

Relevant Parameters

• KV Rating : 2200
• LiPo Cells : 2-6S
• No-load Current(A) : 5
• Max. Power Output(W) : 3000
• Current on Point of Max. Energy Output(A) : 120A

Size & Weight

• O.D.(mm) : 42.0(1.654in)
• Length (mm) : 74.0(2.913in)
• Shaft Diameter (mm) : 5.0(0.196in)
• Weight (g) : 418(14.745oz)

Other Parameters

• Timing : 0
• Applications : 1/8^th Monster Trucks/Trucks
