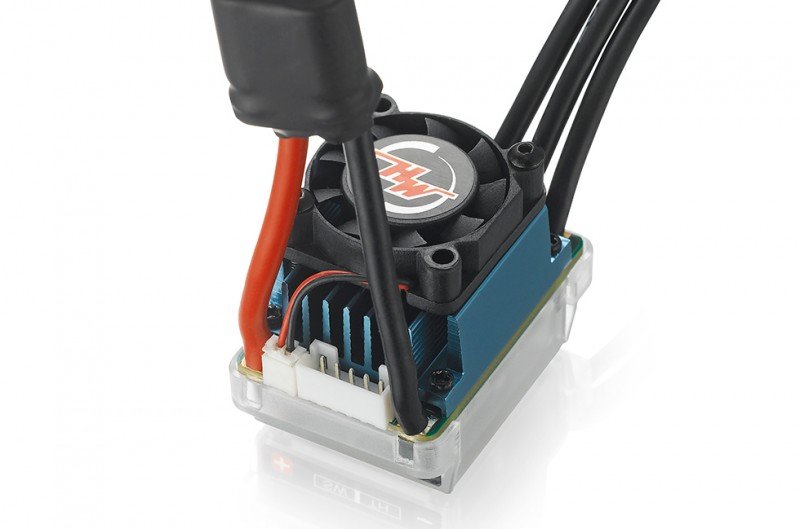

HOBBYWING EzRun 60A - 81010190  [HW-81010190]

High Reliability & Durability

Reliable hardware coupled with higher level pc software technology allows
the EZRUN 60A not to just offer high power production and
overload security regarding the ESC circuit.

Great Flexibility & Versatility

With the strong torque and exceptional production,
the EZRUN 60A really can look after all of the power hungry requirements that expert
motorists need. The highly adjustable parameters regarding the ESC allows motorists to
enjoy smooth throttle response if the throttle/brake linearity is utmost needed.

Efficient Cooling System

Hobbywing patented heat-conductive copper club cover in the energy
board of EZRUN 60A, which can effectively and effectively move heat
to the built-in CNC machined billet aluminum temperature sink housing,
along with high-performance cooling fan could keep your ESC
as cool as possible.

Ways of
ESC Programming

Multiple methods of ESC development supported:
fundamental settings via SET button on ESC,
higher level settings via Light-emitting Diode program box/multifunction LCD
system field & Hobbywing USB LINK computer software.

Regular Firmware Updates
----Free of Charges

You can update the EZRUN 60A because of the Hobbywing USB
LINK software, a multifunction LCD system
field and a laptop computer. Hobbywing updates its ESC
firmware frequently providing you upgraded
features more often whenever available.

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : No

Specifications

• Cont./Peak Current : 60A/380A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC Output : Linear Mode:6V/1.5A

Wires & Connectors

• Input Wires : Red-14AWG-150mm*1/Black-14AWG-150mm*1
• Output Wires : Black-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 25.0x25.0x7.0mm
• Voltage Number : 5-8.4V
• Powered by : Powered by Battery

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 31.5x27.5x24.0mm
• Weight : 32g
