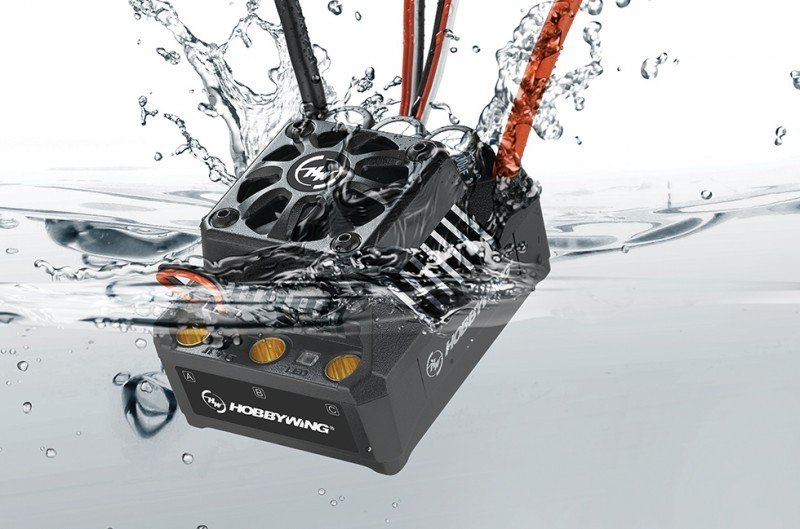

HOBBYWING EzRun MAX6 - 30105000  [HW-30105000]

Tall Reliability & Durability

Built with the most rugged and high-quality elements and along with
cutting-edge firmware, the EZRUN MAX6 can deliver unmatched power
and gratification even for the most hardcore of rushing applications, but is additionally
responsive sufficient to guard it self from harm considering overloading because of physical
abuse, overuse and/or peoples mistake.

Great Flexibility & Versatility

With amazing acceleration capabilities and a rock-solid, stable
output, the MAX6 are designed for instant full-torque start-ups for
wheelies, high-speed rushing on straightaways and powering
through the bumpiest terrain. An individual will have the decision of
adjusting the ESC parameters depending on their choice and ability.

Relevant to All Weather Conditions

The waterproof and dust-proof design permits the MAX6 to be utilized in most weather
conditions with no issue of damage caused on ESC from water or dust.

Tall Voltage integrated BEC

The MAX6 has adopted the world’s very first HV integral BEC with a production present all the way to 25Amp and a switchable production voltage of
6V-7.4V. The high voltage BEC is designed to handle today’s high
voltage servos on demand employed by large scale vehicles.

Advanced and Secure
Electronic Switch

The MAX6 features a digital switch with a lifespan of over
50000 on/off cycles, housed in an entirely waterproof,
dust-proof and shock-resistant design.

Regular Firmware Updates
without any Charge

You can update the MAX6 utilizing the Hobbywing USB
LINK computer software, a multifunction LCD program box and a laptop.
Hobbywing updates its ESC firmware frequently giving you
upgraded features more frequently when available.

Integrated Anti-Spark System

The MAX6 is built with interior anti-spark circuitry that protects not only battery pack connectors
from harm but helps to prevent real injury because of burnt fingers from the unavoidable
problem of sparking whenever starting up the ESC to raised voltage battery packs (5S/6S/7S/8S).

Number of Applications

MAX6 Applications:
This ESC is relevant to various 1/6^th & 1/7^th scale automobiles like the Traxxas XO-1, as well as
suitable to various 1/8^th scale hefty cars like the CEN GST-E. It's the best choice for
high-end aggressively driven builds.

Product Specification

Type

• Scale : 1/6^th、1/7^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Current : 160A/1050A
• Input : 3-8S LiPo/9-24 Cells NiMH
• BEC production : change Mode:6V/7.4V,6A

Wires & Connectors

• Input Wires : Red-10AWG-200mm*1/Black-10AWG-200mm*1
• Output Wires : Black-10AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 6.5mm Famale silver Connectors (pre-soldered on the PCB)

Fan

• Size : 35.0x35.0x10.0mm
• Voltage Number : 5-7.4V
• Powered by : Powered by BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 70.0x56.0x46.5mm
• Weight : 240g

Applications

• Motors : SL BL Motors/SD BL Motors(just in SL mode)
• Vehicles : 1/6^th、1/7^th Touring Car/Buggy/Truck
• KV Rating/T Count : 6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)
