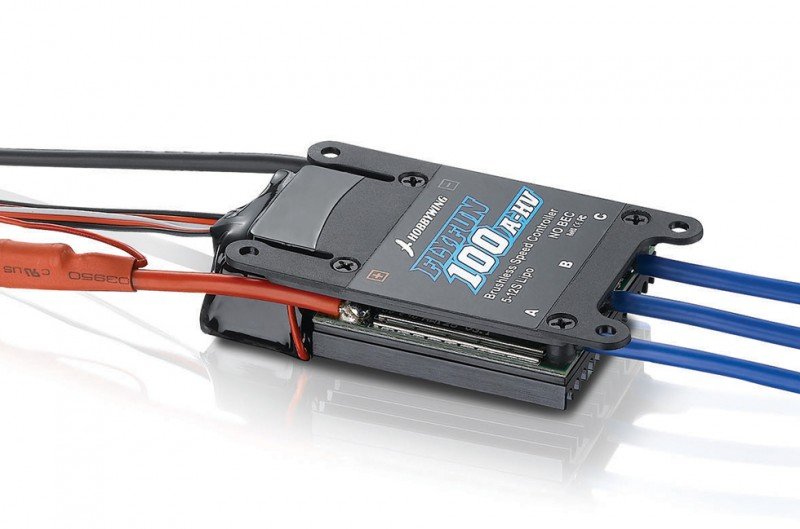

HOBBYWING FlyFun 100A HV OPTO V4 - 80020530 [HW-80020530]

Price:

USD$155.20

Brand:

Hobbywing

Model:

HW-80020530

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC category

Write a review

Description

Great Performance

Imported components additionally the PCB (printed circuit
board) with acutely low impedance adopted by FlyFun ESCs gurantee
great current endurance, good performance and high reliability.

Programmale Parameters

With a rich pair of programmable parameters (via a LED program
card/box), FlyFun ESC is relevant to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Multiple Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the solution life of this ESC.

Product Specification

Type

Brushed/Brushless : BL
High Voltage/Regular : HV

Specifications

Cont./Peak Current : 100A/120A
Input : 5-12S LiPo
BEC Output : No
Output Wires : Blue-12AWG-100mm*3
Input Connectors : No
Output Connecotors : No

ESC Programing via

Transmitter : Supported
LED Program Card : Supported
LED Program Box : maybe not Supported
LCD Program Box : Not Supported
WiFi Module : perhaps not Supported
Program Port : Separate Program Wire

Firmware

Firmware Upgrade : maybe not Supported

Size & Weight

Size : 88.0x55.0x18.0mm
Weight : 112g
