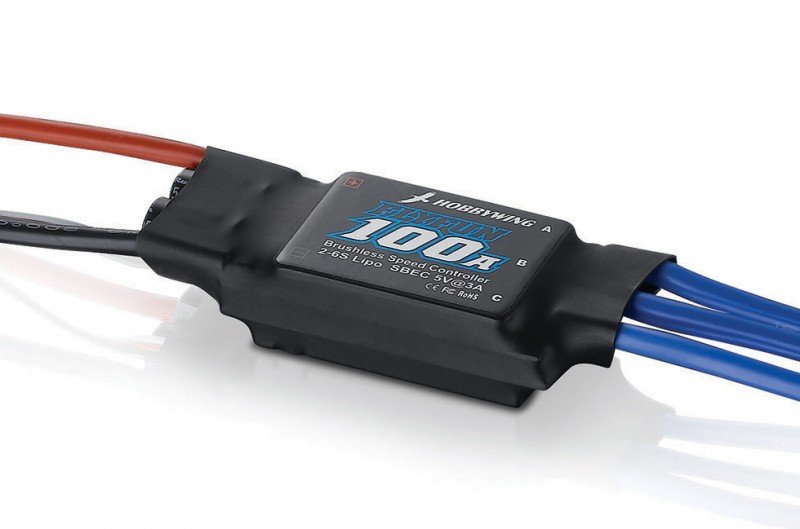

HOBBYWING FlyFun 100A OPTO V4 - 80020660  [HW-80020660]

Great Performance

Imported components and PCB (printed circuit
board) with extremely low impedance used by FlyFun ESCs gurantee
great current stamina, good performance and high dependability.

Programmale Parameters

With a rich pair of programmable parameters (via a LED system
card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Multiple Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle signal loss (or Fail secure), and low voltage
cutoff effectively prolongs the solution life associated with ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 100A/120A
• Input : 2-6S LiPo
• BEC production : No
• Output Wires : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : Not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : Not Supported

Size & Weight

• Size : 83.0x31.0x14.0mm
• Weight : 73g
