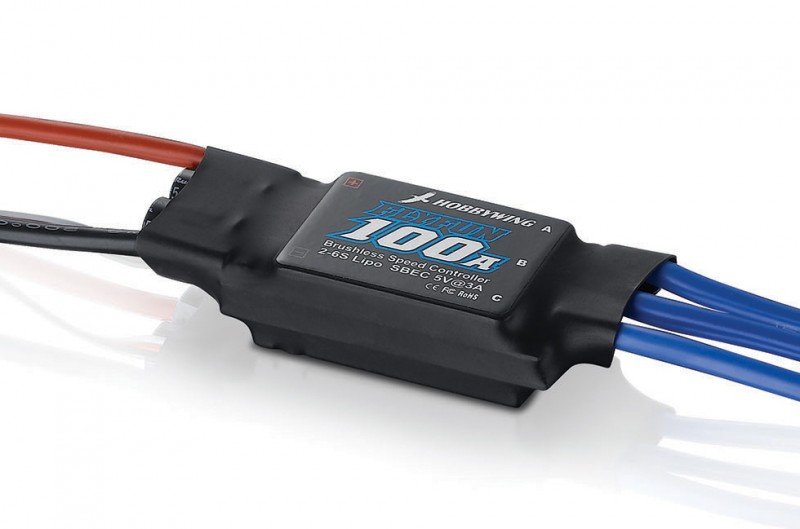

HOBBYWING FlyFun 100A V4 - 80020650  [HW-80020650]

Great Performance

Imported elements plus the PCB (printed circuit
board) with acutely low impedance adopted by FlyFun ESCs gurantee
great present endurance, good performance and high dependability.

Programmale Parameters

With a rich set of programmable parameters (via a LED system
card/box), FlyFun ESC is applicable to different aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features include abnomal input
voltage, ESC thermal, throttle signal loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the service life associated with the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 100A/120A
• Input : 2-6S LiPo
• BEC Output : Linear mode:5V,3A
• Output Wires : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 Gold Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Not Supported
• WiFi Module : perhaps not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 83.0x31.0x16.0mm
• Weight : 76g
