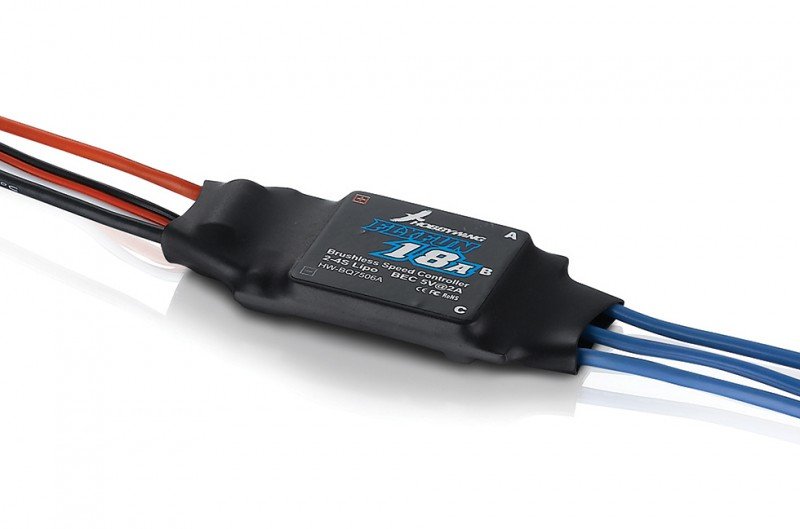

HOBBYWING FlyFun 18A V4.3 - 30202150  [HW-30202150]

Great Performance

Imported components therefore the PCB (printed circuit
board) with incredibly low impedance adopted by FlyFun ESCs gurantee
great present stamina, good performance and high dependability.

Programmale Parameters

With a rich group of programmable parameters (via a Light-emitting Diode program
card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail Safe), and low voltage
cutoff effectively prolongs the solution life for the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 18A/22A
• Input : 2-4S LiPo
• BEC Output : Linear mode:5V,2A
• Output Wires : Blue-18AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Not Supported
• WiFi Module : perhaps not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 48.0x22.5x6.0mm
• Weight : 19g
