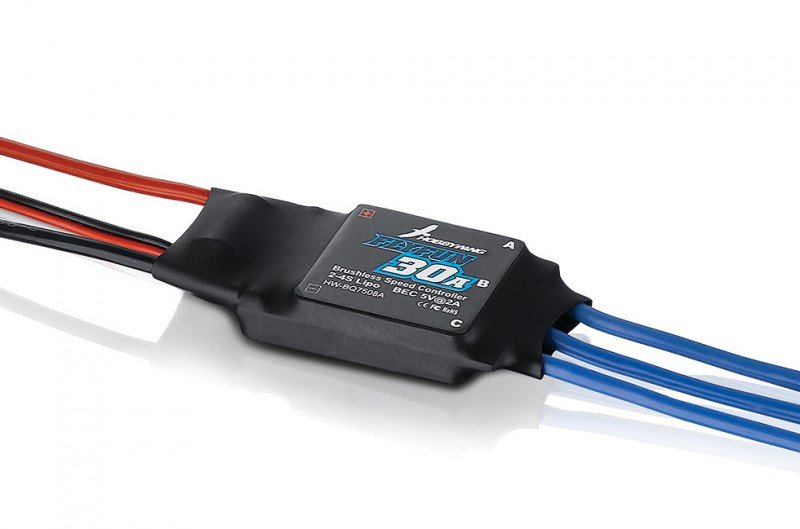

HOBBYWING FlyFun 30A V4 - 80020610 [HW-80020610]

Price:

USD$0.00

Brand:

Hobbywing

Model:

HW-80020610

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC category

Write a review

Description

Great Performance

Imported elements and the PCB (printed circuit
board) with extremely low impedance adopted by FlyFun ESCs gurantee
great present endurance, good performance and high reliability.

Programmale Parameters

With a rich pair of programmable parameters (via a LED system
card/box), FlyFun ESC is applicable to different aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail Safe), and low voltage
cutoff effectively prolongs the service life regarding the ESC.

Product Specification

Type

Brushed/Brushless : BL
High Voltage/Regular : Regular

Specifications

Cont./Peak Current : 30A/40A
Input : 2-4S LiPo
BEC production : Linear mode:5V,2A
Output Wires : Blue-16AWG-75mm*3
Input Connectors : No
Output Connecotors : 4.0 Gold Connectors (Female)

ESC Programing via

Transmitter : Supported
LED Program Card : Supported
LED Program Box : perhaps not Supported
LCD Program Box : perhaps not Supported
WiFi Module : Not Supported
Program Port : Program/Throttle Wire

Firmware

Firmware Upgrade : Not Supported

Size & Weight

Size : 55.0x25.0x9.0mm
Weight : 26g
