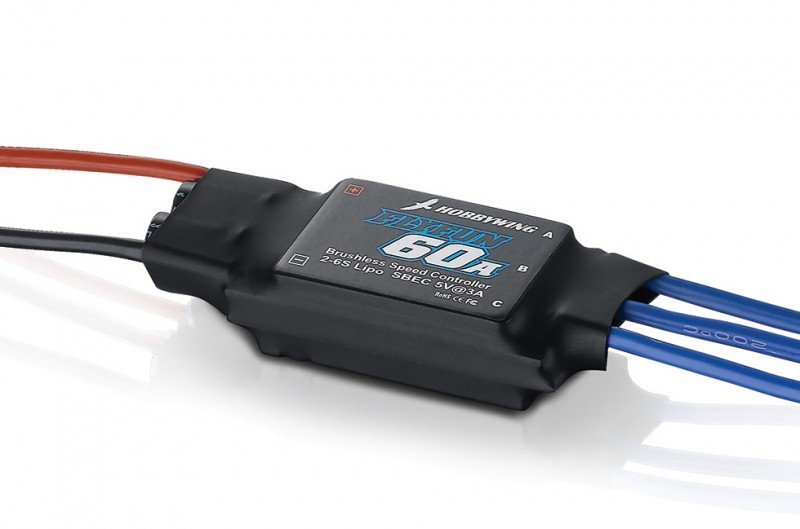

HOBBYWING FlyFun 60A V4 - 80020630  [HW-80020630]

Great Performance

Imported elements plus the PCB (printed circuit
board) with excessively low impedance used by FlyFun ESCs gurantee
great current stamina, good performance and high reliability.

Programmale Parameters

With a rich pair of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features consist of abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff efficiently prolongs the service life for the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 60A/80A
• Input : 2-6S LiPo
• BEC Output : Linear mode:5V,3A
• Output Wires : Blue-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : Not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : Not Supported

Size & Weight

• Size : 83.0x31.0x16.0mm
• Weight : 63g
