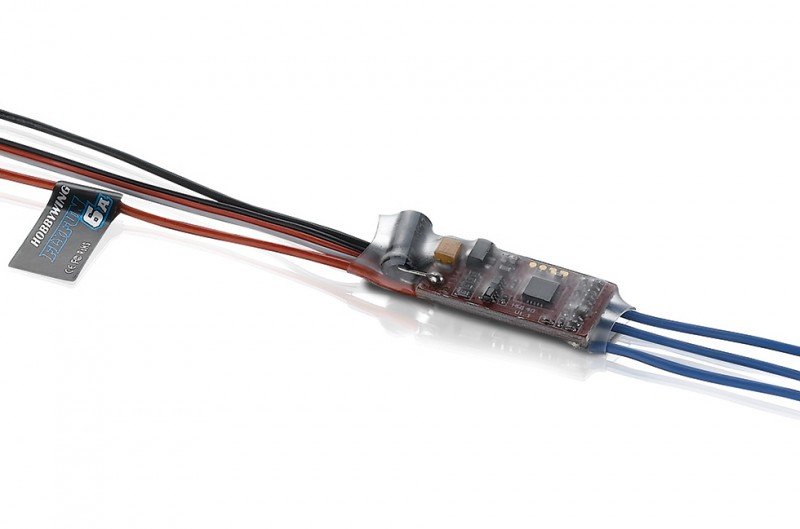

HOBBYWING FlyFun 6A V4 - 80020570  [HW-80020570]

Great Performance

Imported components therefore the PCB (printed circuit
board) with acutely low impedance used by FlyFun ESCs gurantee
great current stamina, good performance and high dependability.

Programmale Parameters

With a rich group of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC does apply to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Multiple Protections

Multiple protection features consist of abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the service life regarding the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 6A/8A
• Input : 2S LiPo
• BEC Output : Linear mode:5V,0.8A
• Output Wires : Blue-22AWG-40mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : Not Supported
• LCD Program Box : Not Supported
• WiFi Module : Not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 32.0x12.0x4.5mm
• Weight : 6g
