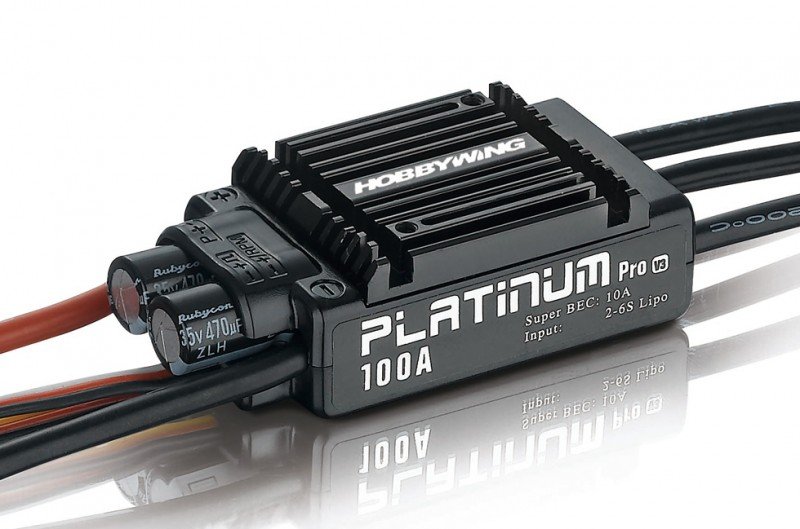

HOBBYWING Platinum 100A V3 - 30203900  [HW-30203900]

New Design & Excellent Performance

New structure design combined with high-performance micro-processor
guarantees users efficient heat dissipation, good compatibility (with various engines),
high driving efficiency, and an such like.

Great energy Output

This Platinum 100A V3 ESC featuring a continuous current of 100A
and top up-to-date of up to 150A guarantees users high and stable production
all the time during each trip.

High Voltage Built-in BEC

The integrated switch mode BEC with a voltage adjustable among
6.0V/7.4V/8.4V, a continuing current of over 10A and top current of 25A
can supply enough power for the servos to operate effectively.

Effective Heat-dissipating System

Besides the heatsink on Platinum 100A V3, an additional cooling
fan is roofed in item field to increase cooling performance (customers can install it
onto ESC heatsink if necessary).

Four Flight Modes & “Auto Restart” Function

This Platinum 100A V3 ESC featuring “Fixed-wing/Helicopter (Linear
Throttle)/Helicopter (Elf Governor)/Helicopter (shop Governor)” four
flight modes and “Auto Restart (Time)” function guarantees users exemplary
speed-governing performance in Heli Governor mode and permits users to cutoff production and restart
motor for avoiding possible crash caused by poor procedure.

Several Protections

Multiple protection features consist of irregular input voltage,
ESC thermal, throttle sign loss (or Fail secure), and low voltage cutoff
effectively prolongs the service life of the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 100A/150A
• Input : 2-6S LiPo
• BEC Output : Switch Mode:6V/7.4V/8.4V,10A

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm Gold Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 70.0x35.0x21.0mm
• Weight : 104g
