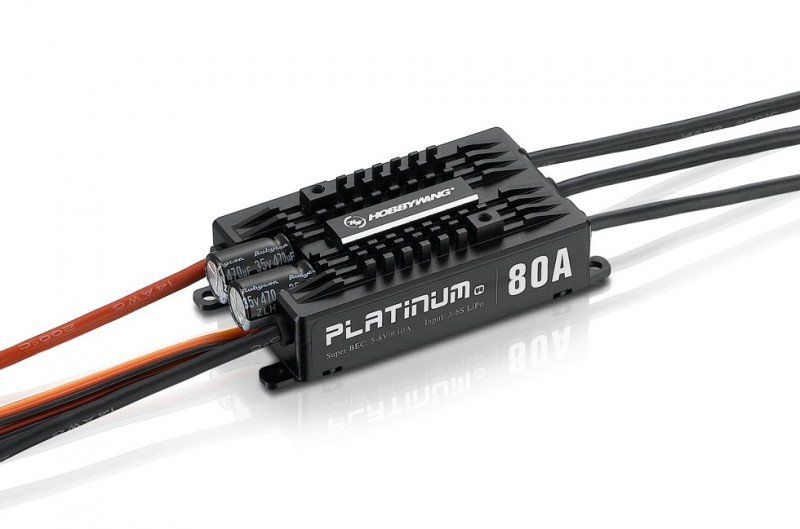

HOBBYWING Platinum 80A V4 - 30203200  [HW-30203200]

Super smooth Start-up

Platinum V4 serial items allows the motor to start extremely smooth
and prevents tail-drift issues that helicopters experience. The start-up time
is adjustable from 8 to 25 seconds, this will positively create a great
kick off point for every trip.

Exceptional Motor Speed Governing

High-performance 32-bit processor with a prossesing frequency of 72MHz coupled with
advanced level algorithm optimizes the speed governing. Together with the adjustable governor
parameters it will guarantee every pilot a precise and efficient control experience.

Other Features

A split system slot allowing you to connect programmer with this ESC allows individual to
● Program ESC,
● Check trip data consist of minimal voltage, optimum heat, standardized RPM and
speed bend (in Heli Governing shop mode) of flight parameters recorded by the ESC,
●Upgrade ESC firmware with a mutifunction LCD system package or a WiFi Module & our
Apple/Android phone App.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four braking system modes. The braking system quantity is adjustable in
normal braking system mode; in proportional braking system mode, the brake force may be
automatically chosen based on the position of radio throttle stick; in reverse
braking system mode, the motor rotation may be changed via a spare transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 80A/100A
• Input Voltage : 3-6S LiPo
• BEC production : Switch Mode:5-8V,10A

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm silver Connectors (Female)

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : Not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 84.3x38.2x20.4mm
• Weight : 97g
