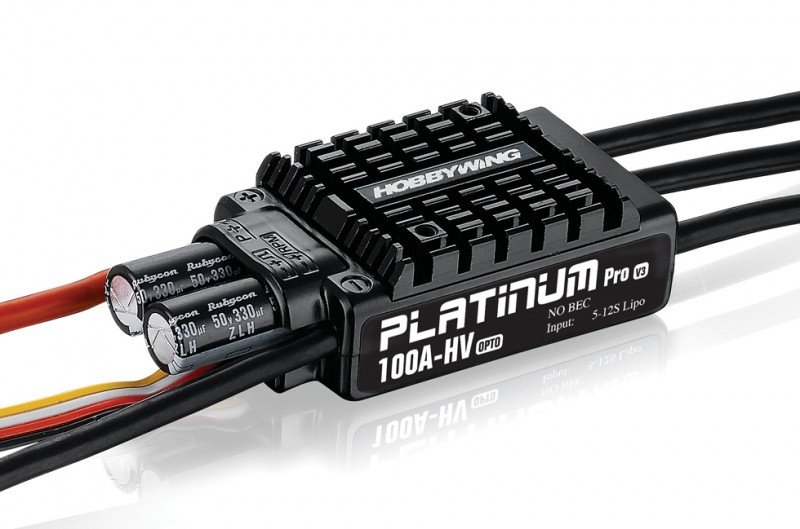

HOBBYWING Platinum HV 100A OPTO V3 - 30203600  [HW-30203600]

Great Power Output

This Platinum HV 100A OPTO V3 ESC can output a continuous current
of 100A and peak present of up to 140A.

Brand new Design & Excellent Performance

New framework design combined with high-performance micro-processor guarantees
users efficient heat dissipation, good compatibility (with different engines),
high driving efficiency, and an such like.

High-voltage Battery Packs Supported

This HV 100A OPTO V3 ESC is intended the operation of 6-12S LiPo battery pack packs.

Four Flight Modes & “Auto Restart” Function

This ESC featuring “Fixed-wing/Helicopter (Linear Throttle)/Helicopter
(Elf Governor)/Helicopter (shop Governor)” four journey modes and “Auto
Restart (Time)” function guarantees users exemplary speed-governing
performance in Heli Governor mode and permits users to cutoff output and restart
engine for avoiding feasible crash triggered
by poor procedure.

Several Protections

Multiple security features consist of unusual input voltage, ESC thermal,
throttle signal loss (or Fail secure), and low voltage cutoff efficiently prolongs the solution
life regarding the ESC.

Other Features

A split system port to get in touch programmer on this ESC allows user to
● program ESC;
● upgrade ESC firmware (multifunction LCD system package is required);
● monitor/record flight data in real time (with an information transmission module);
● power the extra cooling fan (a part of item package).

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Present : 100A/140A
• Input : 5-12S LiPo
• BEC production : No

Wires & Connectors

• Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : perhaps not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 77.0x35.0x21.0mm
• Weight : 104g
