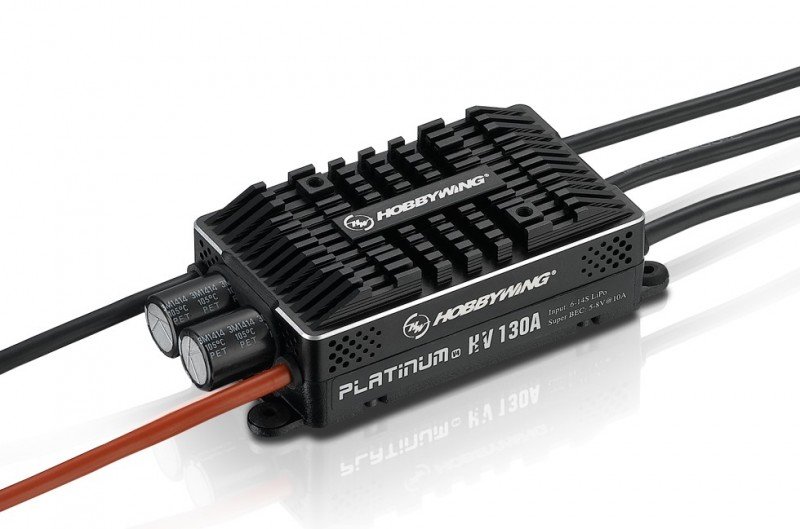

HOBBYWING Platinum HV 130A V4 - 30209200  [HW-30209200]

Super Soft Start-up

Platinum V4 serial products allows the motor to start out acutely smooth and avoids tail-drift
problems that helicopters experience. The start-up time is adjustable from 8 to 25 seconds,
this will certainly create a fantastic starting place for every single journey.

Excellent Motor Speed Governing

High-performance 32-bit processor with a running frequency of 72MHz coupled with
advanced level algorithm optimizes the rate governing. Alongside the adjustable
governor parameters guarantee every pilot a precise control experience.

Tall Voltage integrated BEC

The integrated switch mode BEC with a variable voltage consist of 5V to 8V, a continuous up-to-date of
over 10A and top current of 25A can provide sufficient energy for your servos to operate efficiently.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four braking system modes. The brake quantity is adjustable in normal
brake mode; in proportional brake mode, the braking system force will likely be immediately
allotted in line with the position of radio throttle stick; backwards braking system mode, the
motor rotation may be changed via a spare transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Tall Voltage

Specifications

• Cont./Peak Present : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC Output : Switch Mode:5-8V,10A

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 101.0x45.5x27.0mm
• Weight : 169g
