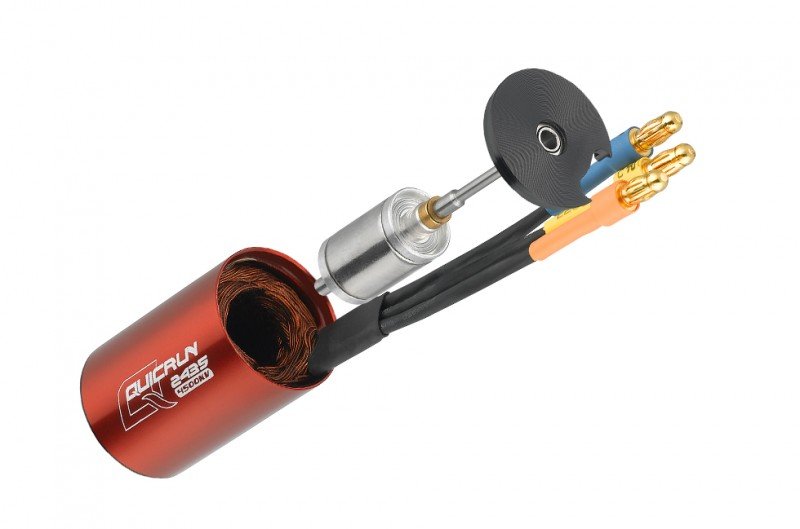

HOBBYWING QuicRun 2435 G2 - 30404001  [HW-30404001]

Great Construction

The use of a heat-resistant magnet attached steel case and double insulated windings,
high accuracy bearings, and rotor with a powerful structure guarantees outstanding
performance and super durability.

Cost-effective

The QUICRUN-2435 is a cheap engine but relevant
to 1/16^th & 1/18^th scale cars.

High Efficiency

The production performance of this motor has an effectiveness all the way to 80percent.
In identical load condition, QUICRUN 2435 has got the greater effectiveness but lower temperature
than other 2435 engines.

Dustproof Design

The dustproof design implemented at load end of this motor makes this
QUICRUN 2435 engine applicable for monster trucks, buggies.

Plug and Play

Pre-soldered with high-quality gold connectors on engine leads,
the QUICRUN 2435 motor is a plug and play.

Item Specification

Type

• Scale : 1/16^th、1/18^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Pole Count : 2

Relevant Parameters

• KV Rating : 4500
• LiPo Cells : 2-3S
• No-load Current(A) : 1.5
• Max. Energy Output(W) : 150
• Current during the Point of Max. Energy Output(A) : 33

Size & Weight

• O.D.(mm) : 24.0
• Length (mm) : 36.5
• Shaft Diameter (mm) : 2.3
• Weight (g) : 73
