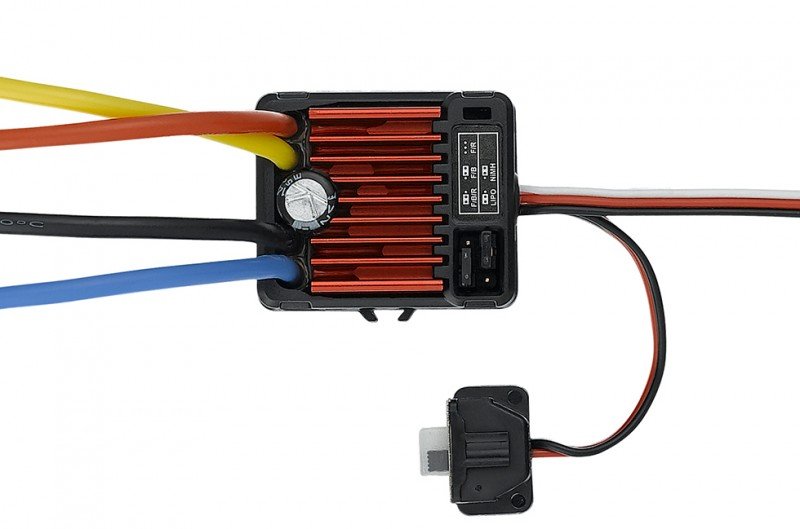

HOBBYWING QuicRun WP 1060 Brushed - 30120201  [HW-30120201]

Simple Operation

This ESC is specially created for brand new novices and intermediate modelers;
it not only carries ahead the outstanding quality of HOBBYWING products but
simplifies the procedure.

Tall Reliability & Durability

Reliable hardware combined with higher level software technology enables the
QUICRUN WP 1060 Brushed never to just provide high power output but
additionally overload protection of the ESC circuit.

Easy to Use

This ESC features automobile throttle calibration and parameter setting via jump caps is easy-to-use,
specially applicable to brand new beginners.

Product Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

Specifications

• Cont./Peak Present : 60A/360A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC Output : Switch Mode:6V/3A

Wires & Connectors

• Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
• Output cables : B lue-16AWG-100mm*1/Yellow-16AWG-100mm*1
• Input Connectors : Big-sized TAMIYA Connector
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : No
• Voltage Range : No
• Powered by : No

ESC Programing via

• SET Button on ESC : Not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : maybe not Supported
• Program Port : Jumper Cap

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 36.5x32.0x18.0mm
• Weight : 39g

Applications

• Motors : Brushed Motors
• Vehicles : 1/10^th Touring Cars/Buggies/Trucks/Rock Crawlers
• KV Rating/T Count : 2S LiPo: T≥12T
  3S LiPo: T≥18T
  (540/550 Size engines)
