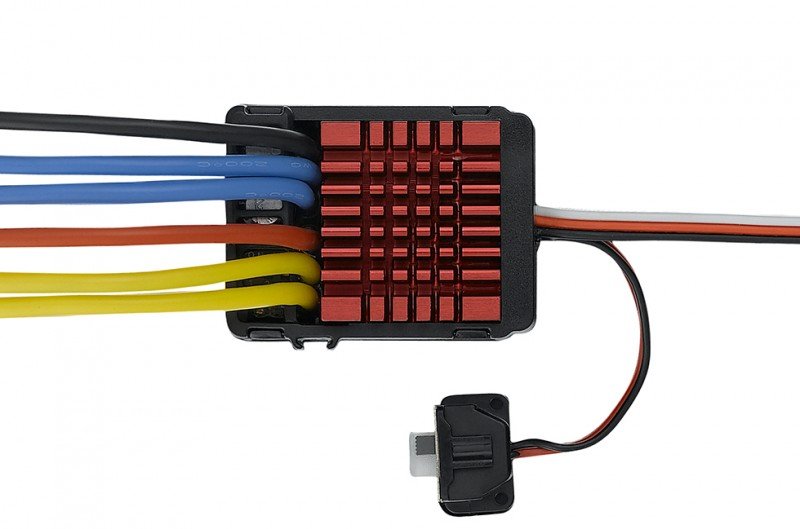

HOBBYWING QuicRun WP 860 Dual Brushed - 30105400  [HW-30105400]

Effortless Operation

This ESC is particularly designed for brand new novices and intermediate modelers;
it not just holds forward the outstanding quality of HOBBYWING products
but simplifies the procedure.

Applicable to all or any Weather Conditions

The waterproof and dust-proof design enables the QUICRUN WP-860-Dual-Brushed
to be utilized in most climate conditions without the issue of harm triggered
to the ESC from water or dirt.

Built-in BEC

The integrated switch mode BEC with a maximum production of 6Amp and voltage of 5V
get this to ESC compatible with various servos.

An easy task to Use

This ESC features car throttle calibration and parameter setting
via jump caps is easy-to-use, particularly relevant to new beginners.

Dual Output

This ESC can drive two brushed engines at exactly the same time.
It’s cost-effective and applicable to low-speed crawlers and tanks which run two engines

Product Specification

Type

• Scale : 1/8^th、1/10^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

Specifications

• Cont./Peak Current : 60A/360A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC Output : change Mode:5V/3A

Wires & Connectors

• Input Wires : Red-16AWG-150mm*2/Black-16AWG-150mm*1
• Output cables : B lue-16AWG-100mm*2/Yellow-16AWG-100mm*2
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : 25.0x25.0x10.0mm
• Voltage Number : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : perhaps not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Not Supported
• WiFi Module : Not Supported
• Program Port : Dip Switch

Firmware

• Firmware Upgrade : Not Supported

Size & Weight

• Size : 46.0x36.0x26.3mm
• Weight : 73g

Applications

• Motors : Brushed Motors
• Vehicles : 1/8^th, 1/10^th Touring Cars/Buggies/Trucks//Rock Crawlers
• KV Rating/T Count : 2S LiPo: T≥12T
  3S LiPo: T≥18T
  4S LiPo: T≥24T
  (540/550/775 Size Motors)
