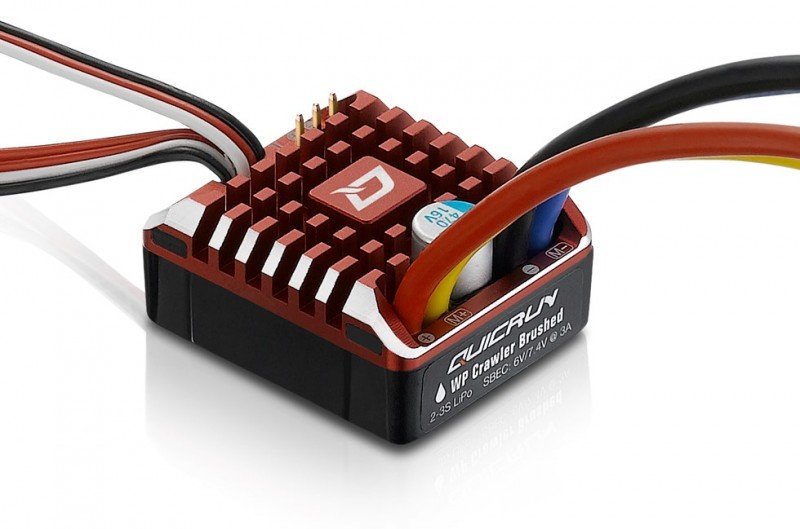

HOBBYWING QuicRun WP Crawler Brushed - 30112750  [HW-30112750]

Special Design for 1/10^th, 1/8^th Crawlers

The dependable hardware combined with effective pc software (features an array of
programmable parameters like start force, drag braking system rate, and etc.)
creates an ideal energy solution to 1/10^th, 1/8^th rock crawlers.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology

The adjustable PWM regularity along with advanced DEO/freewheeling technology
guarantees users great throttle linearity and driving feel.

Relevant to any or all Weather Conditions

The waterproof and dust-proof design permits the WP-Crawler-Brushed
to be utilized in most weather conditions with no issue of
harm triggered towards ESC from water or debris.

Excellent Braking Performance

Hobbywing's innovative, fine-tunable drag braking system price and adjustable drag brake and braking system force
significantly enhance the brag brake and invite users to have the exceptional braking performance.

Super Internal BEC

The integrated switch mode BEC with a maximum production of 6A and voltage
adjustable between 6V and 7.4V permits making use of various standard servos,
high voltage servos along with other peripherals.

15 Programmable Parameters

The WP-Crawler-Brushed, which features 15 programmable parameter products,
does apply to different automobiles and tracks.

Separate Programming/Fan Port

The split PRG/FAN port on the ESC can power an external fan to maximize air conditioning
performance or link the ESC to a LED program field for ESC development.

a Light-emitting Diode Program Box is Included

A standard, committed Light-emitting Diode system field (included in the box) allows users to
plan the WP-Crawler-Brushed easily.

Item Specification

Type

• Scale : 1/8^th & 1/10^th
• Brushed/Brushless : Brushed
• Waterproof : Waterproof

Specifications

• Cont./Peak Current : 80A/400A
• Input Voltage : 2-3S Lipo/5-9 Cell NiMH
• BEC production : Switch  Mode: 6V/7.4V@3A

Wires & Connectors

• Input Wires : Red-14AWG-200mm*1 / Black-14AWG-200mm*1
• Output Wires : Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
• Input Connectors : XT60 Connectors
• Output Connectors : No

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : Not Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 36.2x31.6x17.0mm
• Weight : 58.5g (w/Wires)

Applications

• Motors : Brushed engine (540/550/775 size engines)
• Vehicles : 1/8^th,1/10^th Rock Crawlers
• KV Rating/T Count : Brushed engine Limit with 2S LiPo/6S NiMH: ≥10T or RPM<[email protected]
  Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<[email protected]
