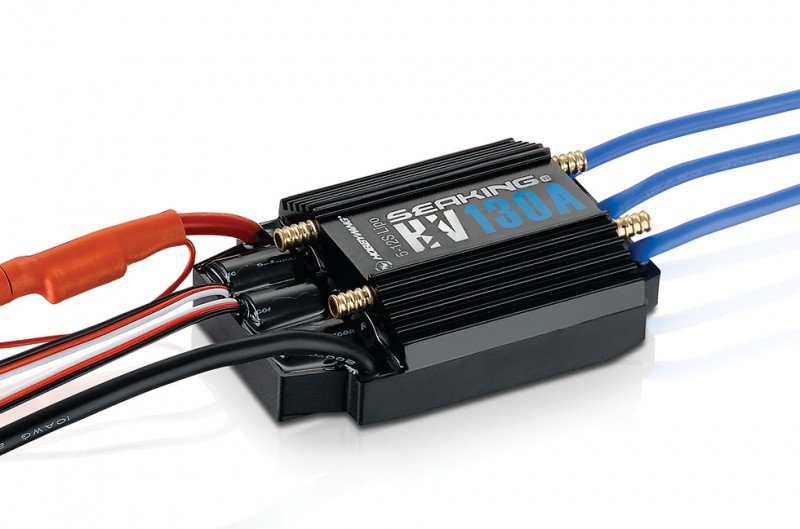

HOBBYWING Seaking 130A HV V3 - 30301200  [HW-30301200]

Performance & Reliability

Built with high-quality elements and along with cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and reliability.
Multiple security adjustable options come in use,
because of the utilization of the low-voltage cutoff security,
thermal security and throttle sign loss protection.

Efficient Cooling System

The Hobbywing patented heat-conductive copper club address in the power board of
the Seaking 60A V3.1 can effectively and effectively move temperature to the built-in CNC machined
billet aluminum water cooled temperature sink housing hence keeping
your ESC as cool as you can.

Waterproof Design

100per cent waterproof without the need of extra security.

Integrated BEC

The integrated switch mode BEC with a maximum production of 6Amp and
voltage of 6V make this ESC compatible with high voltage servo.

Special Algorithm Design

The special algorithm implemented inside ESC result in the acceleration
more incredible and sailing more stable.

Separate PRG/FAN Port

The separate PRG/FAN slot on ESC can connect ESC to an application
box (via the trio-color programming cable) and commence ESC development.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Current : 130A/720A
• BEC Output : No

Wires & Connectors

• Output Wires : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : Not Supported
• WiFi Module : Not Supported
• Program Port : Separate Program Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 88.0x58.0x23.0mm
• I.D./O.D. associated with the Water Cooling Pipe : Ф3.6/5.0 mm
• Weight : 182g

Applications

• Boat Length <150cm
