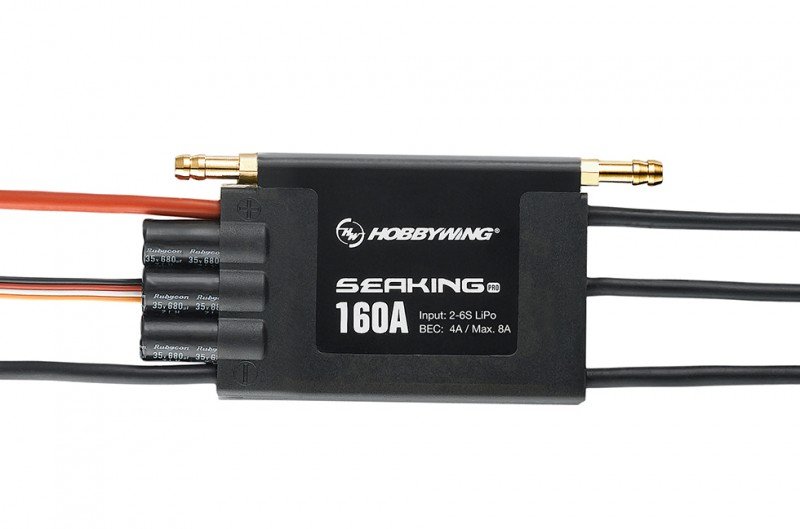

HOBBYWING Seaking PRO 160A - 30302460  [HW-30302460]

Competition Design

The light-weight of the Pro 160A was created to meet with the users requirement
of a light-weight product for several marine competition which fat is a factor
of speed and endurance. The core program for top-level competition
products guarantees an individual first-class control and “abundant”
programmable parameter items for different competition environments.

High Voltage integrated BEC

The built-in switch mode BEC with a maximum output of 8Amp and switchable
voltage of 6V/7.4v make this ESC compatible with high voltage servo.

Firmware Upgradeable

TThe Hobbywing patented heat-conductive copper bar address in the energy board of
the ESC with the water cooling module effortlessly and effortlessly
transfers temperature toward exterior hence maintaining your ESC as cool as possible.

Product Specification

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Current : 160A/1050A
• Input : 2-6S LiPo/6-18 Cells NiMH
• BEC Output : change Mode:6V/7.4V,4A

Wires & Connectors

• Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 108.5x51.5x14.4mm
• I.D./O.D. regarding the Water Cooling Pipe : Ф3.0/5.5 mm
• Weight : 127g

Applications

• Mono2 /Other Competition Boats (≤120cm)
