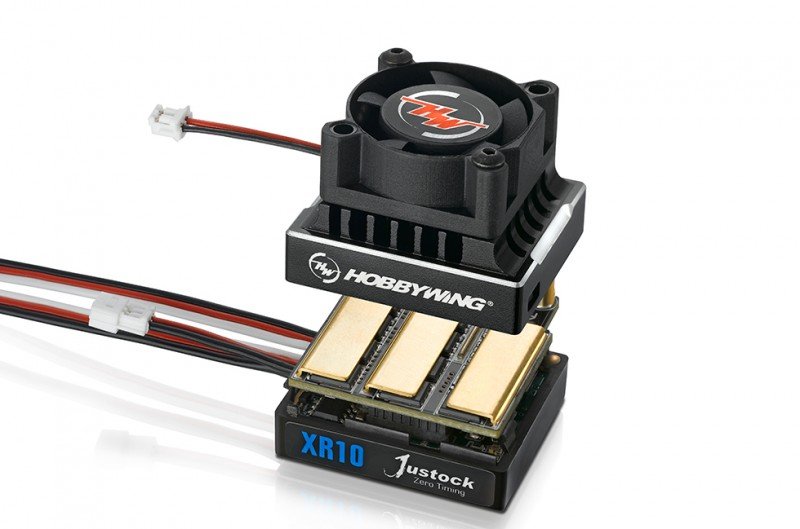

HOBBYWING XeRun XR10 Justock - 30112000  [HW-30112000]

Zero-timing Design

The XR10 JUSTOCK ESC is created specifically
for Zero-timing racing class. Its timing system has
been completely set to ZERO level. Utilizing the
exact same branded motor and winding will make certain that
every racer has similar energy system for
100% reasonable and competitive racing.

Tall Reliability & Durability

Reliable equipment combined with advanced software
technology enables the XR10 JUSTOCK to not just
offer high energy output, but also overload
security of this ESC circuit.

High efficient Heat
Dissipating System

The modified heatsink, which advances the
surface, combined with HOBBYWING
patented copper heat-conductive dishes which
are attached to the MOSFET board enables the
interior temperature to be quickly used in the
heatsink for dissipation. With the
high-performing removable cooling fan, a
highly dependable heat transfer system for
maximum cooling is achieved.

Small Footprint

With its compact design, the XR10 JUSTOCK fits
many chassis from 1/10th touring cars, 1/12th pan
cars and F1.

Regular Firmware Updates Free
of Charge

You can upgrade the XR10 JUSTOCK utilizing the Hobbywing USB
LINK computer software, a multifunction LCD program package and a laptop computer.
Hobbywing updates its ESC firmware regularly providing you with
upgraded features more frequently whenever available

Product Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

Specifications

• Cont./Peak Current : 60A/380A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : 6V@2A

Wires & Connectors

• Input Wires : Blue-14AWG-200mm*1/Black-14AWG-200mm*1
• Output Wires : Red-14AWG-200mm*1/Yellow-14AWG-200mm*1/Orange-14AWG-200mm*1
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 25x25x10mm
• Voltage number : 5-8.4V
• Powered by : Powered by BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Programming Wire : Programming/Throttle Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 33.0x28.0x31.5mm
• Weight : 46g

Applications

• Motors : SL BL Motors
  SD BL Motors
• Vehicles : 1/10^th,1/12^thTouring Car/Buggy Competitions (Especially Stock Class)
• KV Rating/T Count : 2S LiPo: 1/10^th Touring Cars≥8.5T, 1/10^th Buggies≥11.5T
  3S LiPo: 1/10^th Touring Cars≥13.5T, 1/10^th Buggies≥17.5T
  3650 Motors
