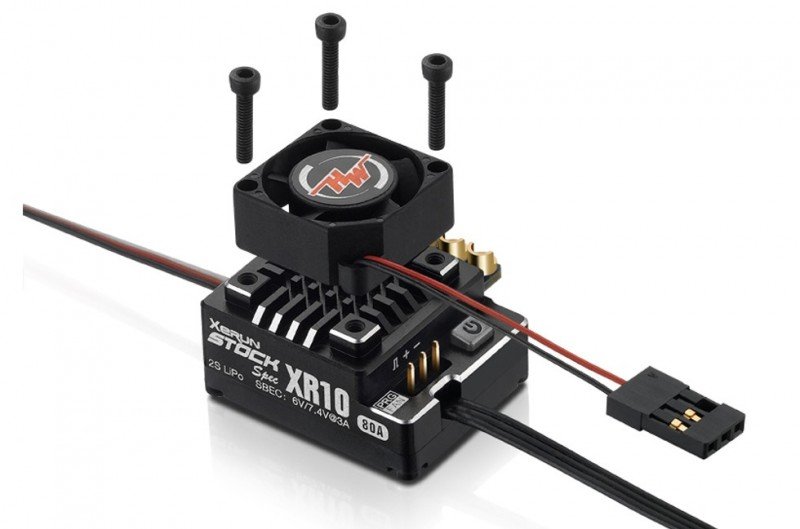

Innovative Double-switch Design
A built-in electronic switch coupled with an external detachable switch efficiently assists
the XR10 Stock Spec avoid some flaws of ordinary or one-switch ESCs. The interior switch
makes the wiring convenient, the external switch is really handy whenever automobile shell is
set up on and also the integral switch is no longer touchable.
Special Design for INVENTORY Class Racing
Reliable hardware along with great computer software (contains 5 common ready-to-use
pages) produces a great energy means to fix the STOCK course of 1/10 scale touring car,
buggy race.
Programming/Upgrading/
information learning Wirelessly
With Hobbywing's "WiFi Express" module and iPhone or an Android phone (using the HOBBYWING
WiFi Link pc software set up), the user can from another location program parameters, update firmware and
check always relevant information of the ESC without leaving the control stand.
Little Size & Light Weight
This ESC is smaller and lighter versus standard version XR10
Pro therefore's the mini form of XR10 professional 160A. The little size
(31.5x25.6x16.1mm) makes the installation convenient and also the
light-weight (just 28g w/o cables) provides more weight margin
when adjusting the total amount for the chassis.
Super Internal BEC
The built-in switch mode BEC with a maximum output
of 6A and voltage adjustable between 6V and 7.4V
enables the consumer to utilize different high voltage servos.
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate
throttle and braking system control for several classes of competitions (esp. the Stock class).
Data-logging Capability
This ESC features the data-logging function which could record
the utmost ESC & motor conditions, the minimum battery
voltage, the utmost engine RPM and an such like. immediately and
allows users to check those information via a LCD program field or
WiFi module after each use.
Product Specification
Type
- Scale : 1/10th
- Brushed/Brushless : BL
- Sensored/Sensorless : SD
- Waterproof : No
Specifications
- Cont./Peak Present : 80A/380A
- Input Voltage : 2S Lipo/5-7 Cell NiMH
- BEC production : change Mode: 6V/7.4V,3A
Wires & Connectors
- Input Wires : Black-14AWG-200mm*2
- Output cables : Black-14AWG-200mm*3
- Input Connectors : No
- Output Connectors : No
Fan
- Size : 20x20x8mm
- Voltage number : 5-7.4V
- Powered by : BEC
ESC Programing via
- SET Button on ESC : Not Supported
- LED Program Box : maybe not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : individual Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 31.5x25.6x16.1mm
- Weight : 54.5g (w/Wires)
Applications
- Motors : SL BL Motors
SD BL Motors - Vehicles : STOCK course of 1/10th Touring vehicle & Buggy Racing
- KV Rating/T Count : 1/10th Touring Cars≥10.5T, 1/10thBuggy≥13.5T
