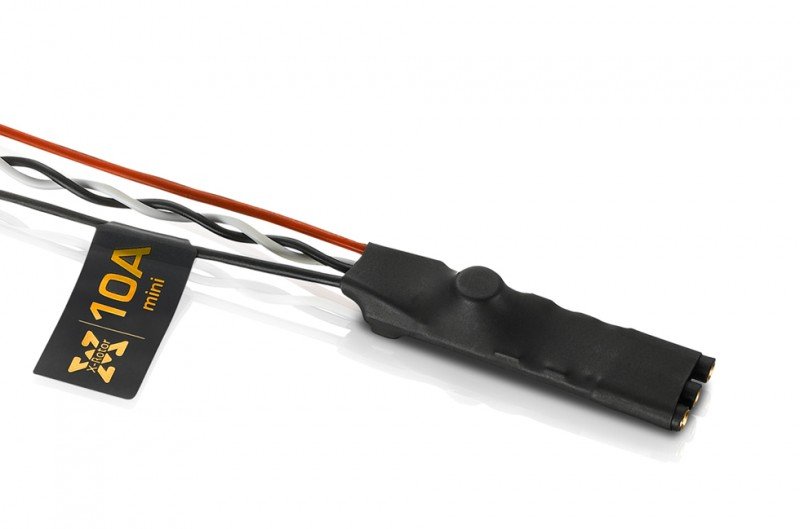

HOBBYWING XRotor 10A Mini - 30901008  [HW-30901008]

Rapid Throttle Response

Dedicated system for multi-rotor ESCs,
that will be a lot better than different open-source programs,
greatly improves throttle response.

Very easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making use simple, very smart and adaptive.

Less Signal Interference

The twisted-pair throttle signal cable effortlessly decreases
disturbance produced in alert transmission and makes journey
more stable and reliable.

Super minimal Internal Resistance

Good quality MOSFETs utilized by this XRotor 10A mini ESC
make internal opposition low but present stamina high.

Small and Compact Design

With smaller size than regular 10A ESCs,
XRotor 10A mini ESCs completely match different QAVs and be
the very first choice for many players.

Super tall Throttle Signal

Compatible with various flight-control systems and aids a throttle
signal regularity all the way to 621Hz.

Product Specification

Specifications

• Cont./Peak Present : 10A/15A
• LiPo Cells : 2-3S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-20AWG-100mm*1/Black-20AWG-100mm*1
• Output cables : No
• Input Connectors : No
• Output Connectors : 2.0mm Gold Connectors (Female)

Features

• Throttle number Calibration : Supported
• Stick Programming : Supported
• DEO : perhaps not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : Not Supported

Size & Weight

• Size : 44.2x12.2x9.2mm
• Weight : 7g
