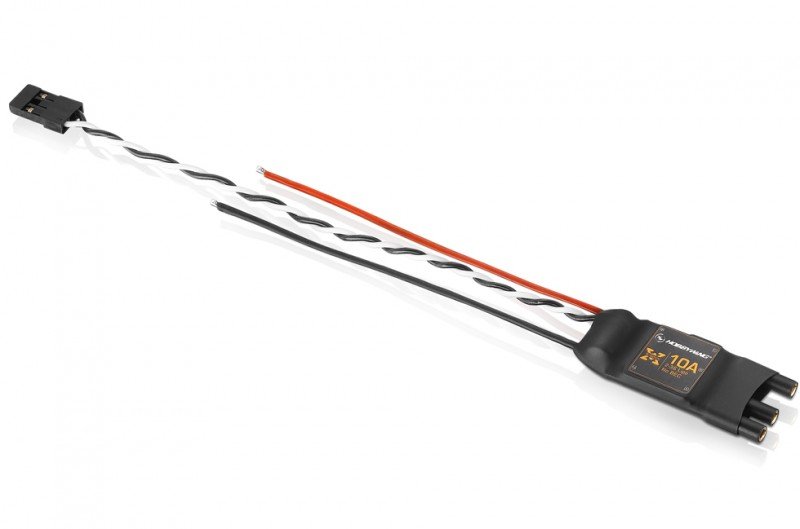

HOBBYWING XRotor 10A(Asian Version B) - 30901002  [HW-30901002]

Fast Throttle Response

Dedicated system for multi-rotor ESCs, which is better than various
open-source programs, greatly improves throttle reaction.

Very easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making usage simple, extremely intelligent and adaptive.

Less alert Interference

The twisted-pair throttle signal cable effectively reduces interference produced
in alert transmission and makes journey more stable and reliable.

Super Low Internal Resistance

Good quality MOSFETs utilized by this XRotor 10A ESC make
internal resistance low but present stamina high.

Super High Throttle Signal

Compatible with different flight-control systems and aids a
throttle sign frequency of up to 621Hz.

Specifications

• Cont./Peak Current : 10A/15A
• LiPo Cells : 2-3S LiPo
• BEC Output : No

Wires & Connectors

• Output Wires : No
• Input Connectors : No
• Output Connectors : 2.0mm Gold Connectors (Female)
• Throttle number Calibration : Supported
• Stick Programming : Supported
• DEO : maybe not Supported
• OneShot Mode : maybe not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

Size & Weight

• Size : 44.0x16.7x8.2mm
• Weight : 8g

Applications

• 250 Class Multirotors
