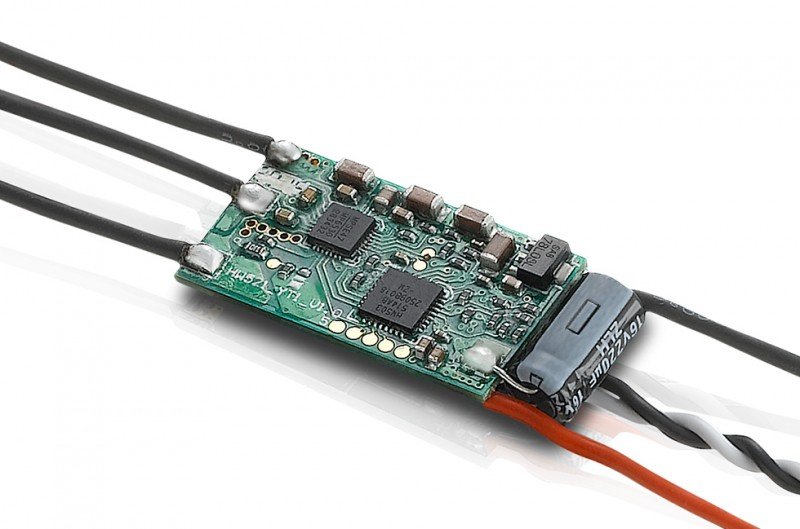

HOBBYWING XRotor 15A - 30901100  [HW-30901100]

The most effective ESC for 250/300 course Multi-Rotors

in comparison with regular 12A & 10A QAV ESCs, the XRotor-15A ESC’s present endurance
is enhanced by 25percent to 50percent. There won’t be any issue to set it with 1806 size motor &
2204 size motor. They'll provide high energy for 250/300 class multi-rotors.

DEO (Driving Efficiency
Optimization)

The XRotor-15A ESC adopted the DEO technology that has
multiple benefits:
● Active braking. Whenever reducing the throttle amount, the motor will
decelerate rapidly. This particular feature enables pilot to more easily
perform all maneuvers like razor-sharp turns, altitude quick changes, and
sudden braking.
● Higher driving effectiveness, longer journey time.
● Lower ESC temperature.
* various companies call this technology by different names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

Twisted-Pair Signal Cable
Reduces Interference

The twisted-pair throttle sign cable effortlessly decreases
interference produced in signal transmission and makes
the flight more stable and dependable.

Product Specification

Specifications

• Cont./Peak Present : 15A/20A
• LiPo Cells : 2-4S LiPo
• BEC Output : No

Wires & Connectors

• Input Wires : Red-20AWG-100mm*1/Black-20AWG-100mm*1
• Output cables : Black-20AWG-100mm*3
• Input Connectors : No
• Output Connectors : 2.0mm silver Connectors (Female)

Features

• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : Not Supported
• Motor Rotation : Not Supported

Size & Weight

• Size : 47.0x17.0x8.3mm
• Weight : 10.5g
