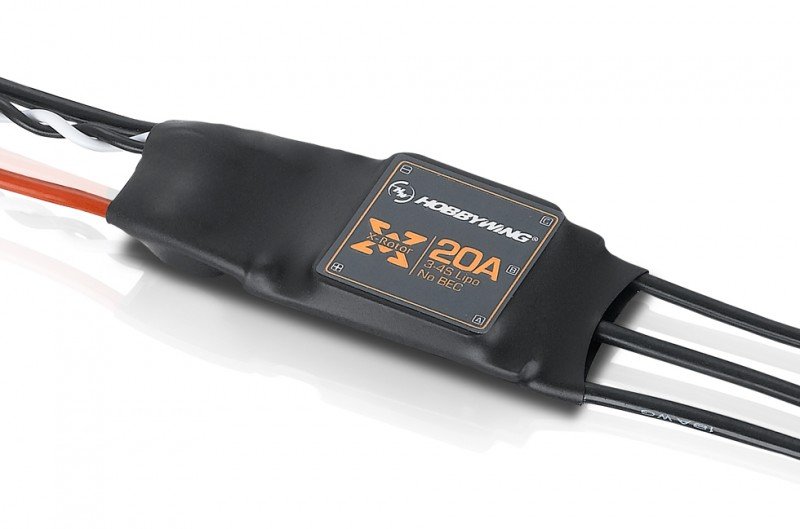

HOBBYWING XRotor 20A(Asian Version B) - 30901004  [HW-30901004]

Rapid Throttle Response

Dedicated system for multi-rotor ESCs, which will be a lot better than various open-source
programs, greatly improves throttle response.

Very easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making use simple, highly smart and adaptive.

Less Signal Interference

The twisted-pair throttle sign cable efficiently decreases disturbance produced
in alert transmission and makes flight more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs utilized by this XRotor 20A ESC make
internal resistance low but present endurance high.

Super High Throttle Signal

Compatible with different flight-control systems and aids a
throttle signal frequency all the way to 621Hz.

Specifications

• Cont./Peak Current : 20A/30A
• LiPo Cells : 3-4S LiPo
• BEC production : No

Wires & Connectors

• Output cables : No
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)
• Throttle number Calibration : Supported
• Stick Programming : Supported
• DEO : perhaps not Supported
• OneShot Mode : perhaps not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : perhaps not Supported

Size & Weight

• Size : 50.0x21.6x12.0mm
• Weight : 15g

Applications

• 330/450 Course Multirotors
