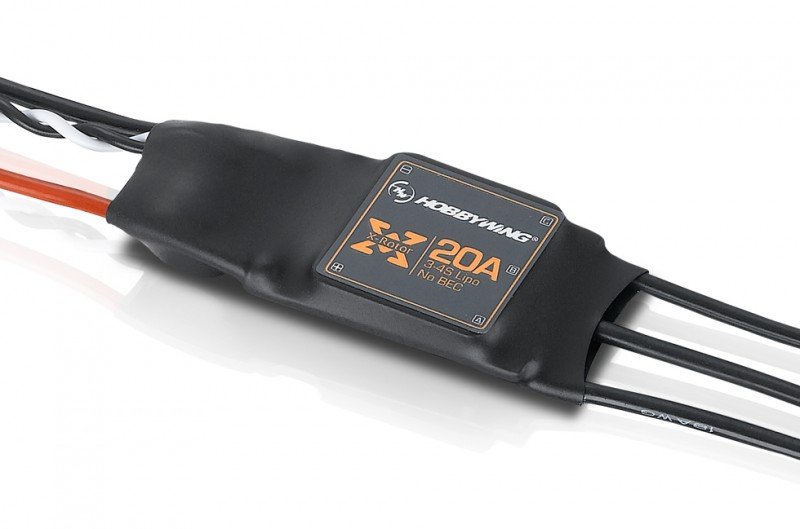

HOBBYWING XRotor 20A(Asian Version A) - 30901012  [HW-30901012]

Fast Throttle Response

Dedicated program for multi-rotor ESCs, which is better than different open-source
programs, greatly improves throttle reaction.

Easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making use simple, extremely smart and adaptive.

Less Signal Interference

The twisted-pair throttle sign cable effortlessly reduces disturbance produced
in alert transmission and makes trip more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs utilized by this XRotor 20A ESC make
interior resistance low but current stamina high.

Super High Throttle Signal

Compatible with various flight-control systems and aids a
throttle sign regularity of up to 621Hz.

Specifications

• Cont./Peak Current : 20A/30A
• LiPo Cells : 3-4S LiPo
• BEC production : No

Wires & Connectors

• Output Wires : Black-18AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)
• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Not Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 42.0x21.6x12.0mm
• Weight : 18.5g

Applications

• 330/450 Class Multirotors
