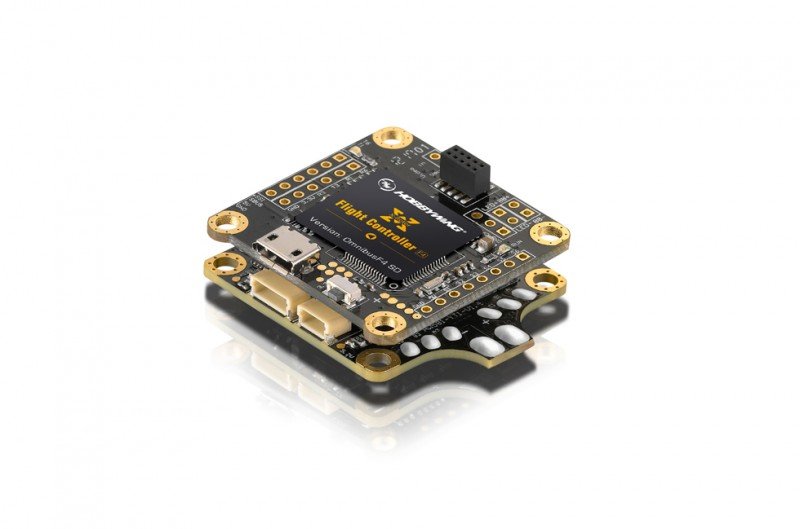

HOBBYWING XRotor Flight Controller F4 - 31001000  [HW-31001000]

Super-high Running Frequency

The STM32F405 MCU which features the effective computing ability and super-high
operating frequency allows the FC to operate the PID and gyro with higher regularity.

DShot 150/300/600/1200,
Oneshot125, Oneshot42,
Multishot Modes Supported

Besides the newest Dshot 150/300/600/1200 mode, the FC
additionally supports the standard PWM mode, Oneshot125 mode,
Oneshot42 mode and Multishot mode.

TF-card Insertion Supported

A TF-card can be placed in to the FC to record and save your self more journey data,
which allows users to modify their aircraft effortlessly.

Onboard OSD Microchip

Onboard OSD microchip enables users to
effortlessly adjust various (OSD) parameters via
the Betaflight/Cleanflight computer software.

BetaFlight/Cleanflight Firmware Ready

The FC which supports Betaflight/Cleanflight firmware & allows parameter adjustment via Betaflight /Cleanflight computer software is more applicable to FPV flying & rushing.

Compatible(using the Hobbywing 4IN1 ESC&VTX)

It’s very easy to wire and install whenever pairing the FC with a Hobbywing 4-in-1 tower ESC &
a HOBBYWING VTX (Video Transmitter).

Item Specification

Basic Features

• Compatible with (Multirotors) : Quadcopters, hexacopters
• Firmware : OMNIBUSF4SD
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• TF-card : Supported (optimum: 32g)
• USB Port : MicroUSB

Size & Weight

• Size : 35*35mm
• Weight : 6g
