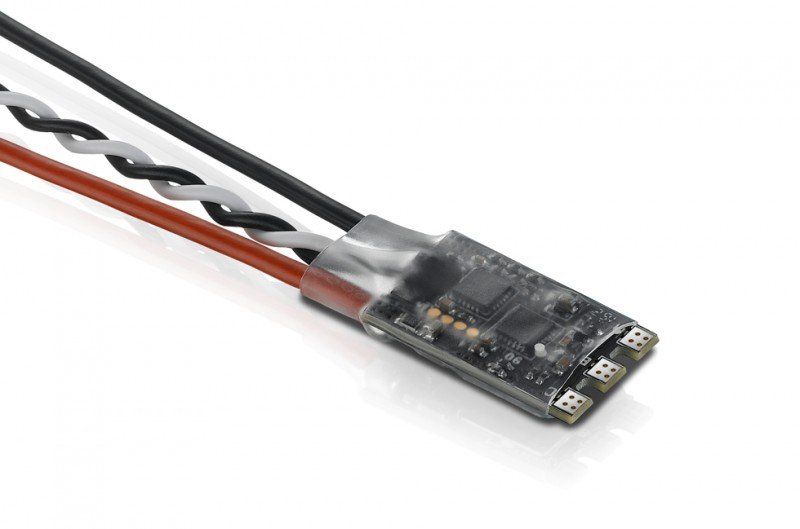

HOBBYWING XRotor micro 20A BLHeli - 30901066  [HW-30901066]

Super Small & Light

ESCs with incredibly tiny size and light weight are
specially created for competition FPV drones.

Quality Components

The usage of F396 48MHz MCU, brought in MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 layers of PCBs and other
quality components guarantees less temperature, higher efficiency and rapider response.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the signal cable (on ESCs), and system 4 ESCs at the same time after
linking their journey controller toward BLHeliSuite software if the flight controller uses the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the motor retardation and allows
users to brake the FPV drones better. Active-freewheeling
technology improves driving efficiency, journey time and heat
dissipation. The ESCs help OneShot125 high speed throttle
sign and regular throttle signal (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle sign cable effectively decreases disturbance produced in alert
transmission and makes the flight alot more stable and reliable.

Specifications

• Cont./Peak Current : 20A/30A
• LiPo Cells : 2-4S LiPo
• BEC Output : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : Not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 24.0x13.9x5.5mm
• Weight : 7g

Applications

• FPVs with 130-280mm Diagonal Wheelbase
